MPLN-Z10-5L
Alt: MPL Series
$91.83

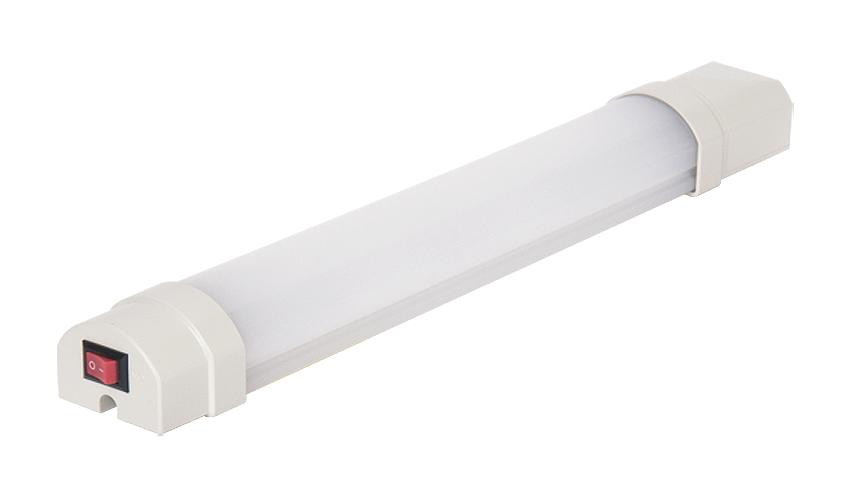

LED Panel Light Bar, Natural White, 500mm, Terminal Block with Power Switch, 110VAC, Wide Angle High Illumination, Easy Installation Fixing Slide Rail Bracket with Screws
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Amerimation represents a number of top Korean brands that includes Menics light towers, Kacon and Boxco. They are the sole representative for North and South America.
Known for their competitive prices, Amerimation sells through distribution and is located right here in Illinois. Most products can ship from our stock, or theirs, within 1 to 2 days.
Specifications
All - Approvals
RoHS Compliant
Color
White - Natural, Warm, Cool
LED Light Strip Length
500-580mm
All - Specific Ratings
IP60
Series
MPL Series
All - Voltage
110/120VAC
Warranty
3 Years
Alternate Part Number
MPL Series
Weight
0.5
Features Include:
- Application: Working light, Enclosure box, Semiconductor machinery
- Power supply: 110VAC
- Type: Z-type, Terminal block + Built-in ON/OFF switch type
- Light Color: Natural White
- Strip Length: 500mm
- Connection: 60227 KS IEC 53, 2CX0.7-Exposure length: 400mm
- Material: Housing-PC resin (milky white), Cover-ABS resin(ivory),
- Bracket: - PC resin (transparent)
- Withstand voltage AC: 1500VAC 60Hz for 1 minute / DC: 500VAC 60Hz for 1 minute
- Insulation resistance: 100MΩ or more (500VDC Mega between all terminals and case)
- Vibration 10~55Hz (cycle 1 minute): Amplitude 0.75mm X, Y, Z 1hour
