XPV1/52C
Alt: TEXP Series
$638.73
Motor, XP, 1.5hp, 3600rpm, 3 Phase, 230/460V, 143TC AEUHXG/AEUHXF, NEMA Premium, Round Body, C-Face, IP55
- Weight:
- 78.00 LBS
- Minimum Purchase:
- 1 unit
Description

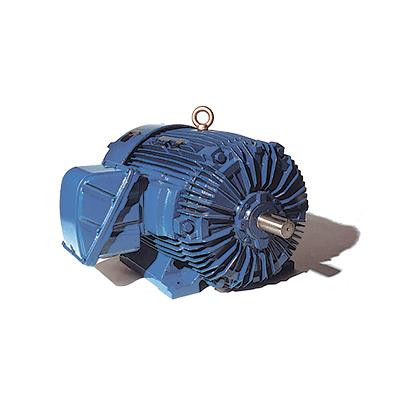

Our TECO TEXP series are totally enclosed fan cooled (TEFC) explosion proof motors that are NEMA Premium Efficiency.
This series is available from 1 to 400hp and is Class 1, Div 1, Group C & D as well as Class II, Groups E, F and G.
Applications include: grain elevators, pumps, blowers, applications where explosive gases or explosive dusts/grains are present
Series Features Include:
- Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
- Class I, Div. 1, Group C & D and Class II, Groups E, F and G - Temp Code T2D/T3B Up to and Including F# 256T
- Class I, Div. 1, Group D and Class II, Groups E, F and G - Temp Code T2D/T3B for F# 284T and Larger
- UL File: E84757
- CSA File: #64671
- Class F Insulation
- Class B Temperature Rise
- NEMA Design B Torques
- Standard with Klixon 9700K Temperature Limiting Switch, 1 per Phase
- Grounding Terminal Inside Main Conduit Box
- Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
- Dual Drilled Back Feet on 447/9 and 5007/9 Frames
- Designed for 40˚C Ambient Temperature
- Designed for 3300 ft. Elevation
- Bi-Directional Rotation
- Cast Iron Frame, Fan Cover, End Brackets and Main Conduit Box
- Capable of Withstanding Explosion Force as Required by UL
- Stainless Steel Breather Drains with Bronze Filters (For Horizontal Mount Only)
- 1045 Carbon Steel Shaft
- Aluminum Die Cast Squirrel Cage Rotor Construction through 449 Frame; Fabricated Copper Bar on 5000 Frame
- Aluminum Die Cast Squirrel Cage Rotor Construction
- Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
- Paint Color: Dark Blue - Munsell 5 PB 4.5/2
- Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
- High Quality Ball (or Roller) Bearings Regreasable with Mobil PolyrexTM EM for F# 280TS and Larger
- Bronze Flinger on Both Ends
- Cast Iron Inner and Outer Bearing Caps for F#280TS and Larger
- Stainless Steel Nameplate
- Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
- UL Listed for Inverter Duty
- Inverter Duty Magnet Wire Capable of Withstanding Voltage Spikes of up to 2200 Volts
- Inverter Duty Speed Ranges:
- VT = 3 - 60 Hz
- CT for 140T - 210T Frames = 10 - 60 Hz
- CT for 250T - 320T Frames = 13 - 60 Hz
- CT for 260T - 440T Frames = 16 - 60 Hz
- 9 Leads for 5 HP and Smaller;
- 12 Leads for 7.5 HP to 125 HP;
- 6 Leads for 150 HP and Larger
Need More Information?
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Teco Westinghouse
XPV1/54C
Motor, XP, 1.5hp, 1800rpm, 3 Phase, 230/460V, 145TC AEUHXG/AEUHXF, NEMA Premium, Round Body, C-Face, IP55
$614.76
Teco Westinghouse
PM7/52C
Motor, 7.5hp, 3600rpm, 230/460V, 213TC Frame, 90.9% FL Efficiency, 11 FL Amps (460V), 3 Phase, TEFC, Footed, IP55, Super Premium Efficiency Permanent Magnet Motors, MAX-PM™ (PMAC Motor) (Drop Ship Only Via Truck)
$1,139.75
$997.34
Teco Westinghouse
PM1/52C

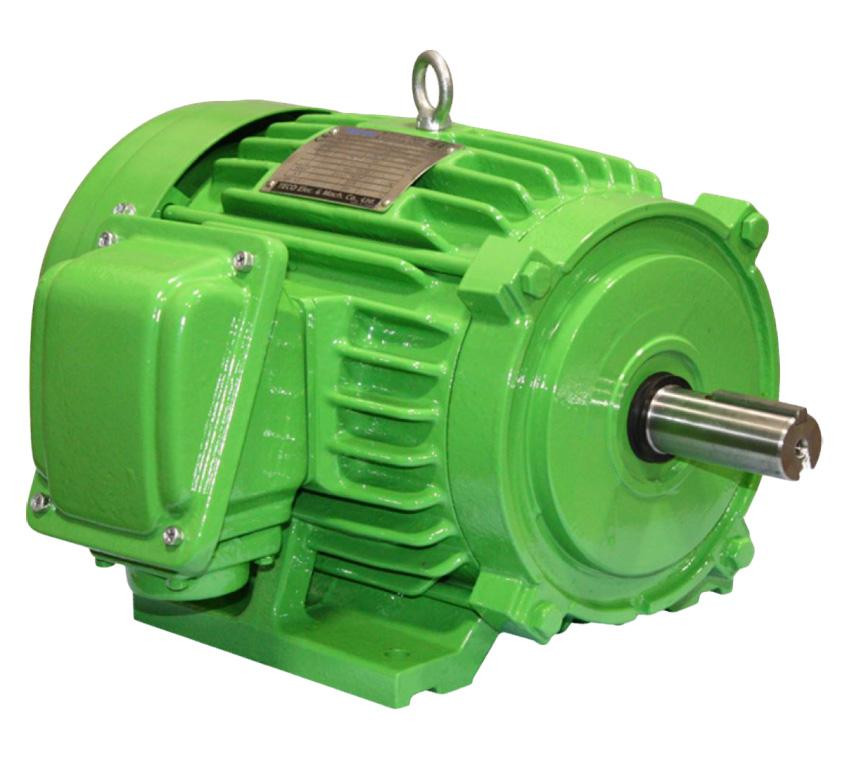

Motor, 1.5hp, 3600rpm, Three Phase, 230/460V, 143TC Frame, 85.2% FL Efficiency, 2.2 FL Amps (460V), TEFC Enclosure, Footed, IP55, Super Premium Efficiency Permanent MagnetMotors, MAX-PM™ (PMAC Motor)
