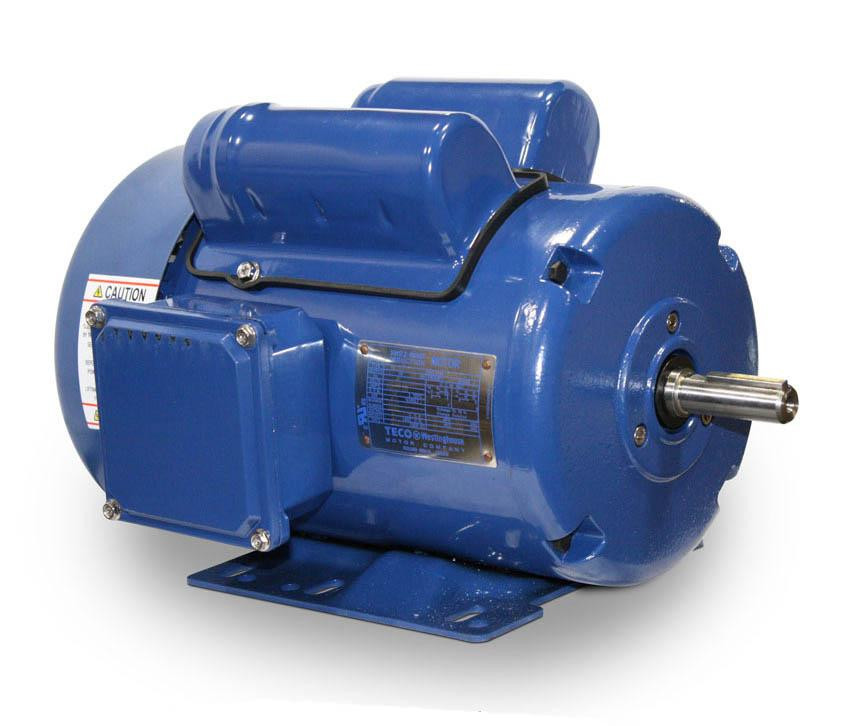

SPT0/72

Product image is representative only, please verify specifications.

Teco Westinghouse

SPT0/72

Alt: W22 HVAC Series

$262.26

Motor, Single Phase, .75hp, 3600rpm, 115/208/230V, 48 Frame, TEFC, HVAC, NEMA Premium, IP44

Weight:
30.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
  • Available in 3600 and 1800 rpm
  • TEFC - totally enclosed fan cooled, IP44
  • Voltage: 115/208/230; 3hp and larger are 208-230V
  • Capacitor start, capacitor run
  • Class F insulation
  • Designed for 40°C ambient temperature and 3300 foot elevation
  • Bi-directional rotation
  • Rolled steel frame
  • 1045 carbon steel shaft

Teco HVAC single phase TEFC motors are designed for fans, pumps, compressors, a/c blowers, heating and ventilation applications.

Marshall Wolf Automation is your authorized stocking Teco distributor!

Features Include:

  • Capacitor Start, Capacitor Run
  • Class F Insulation
  • Automatic Reset Overload
  • Class B Temperature Rise
  • Designed for 40√Ä√∂C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Bi-Directional Rotation
  • Rolled Steel Frame
  • Cast Aluminum Terminal Box
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction
  • Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
  • Paint Color: Blue - Munsell 5 PB 3/8
  • Double Shielded Bearings Pre-Packed with Lithium Base Grease
  • No Terminals; Lead End Peel-Off Insulation
  • Grounding Terminal Inside Main Box
  • Stainless Steel Nameplate
  • Motors are UL Recognized for United States and Canada
