Teco Westinghouse
SPHT0/24
Motor, Single Phase, .25hp, 1800rpm, 115/208/230V,56 Frame, TEFC, HVAC, NEMA Premium, IP44
$233.59

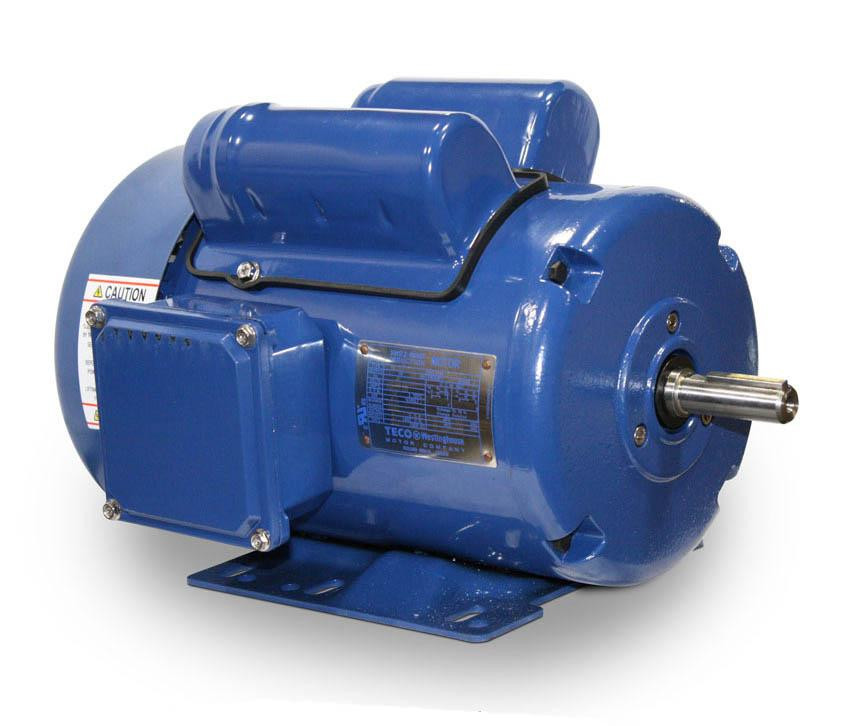

Product image is representative only, please verify specifications.
SPHT0/32
Alt: HVAC Single Phase ODP
$233.59
Motor, Single Phase, 0.33hp, 3600rpm, 115/208/230V, 56 Frame, TEFC, HVAC, NEMA Premium, IP44
- Weight:
- 24.00 LBS
- Minimum Purchase:
- 1 unit
Description
- Available in 3600 and 1800 rpm
- TEFC - totally enclosed fan cooled, IP44
- Voltage: 115/208/230; 3hp and larger are 208-230V
- Capacitor start, capacitor run
- Class F insulation
- Designed for 40°C ambient temperature and 3300 foot elevation
- Bi-directional rotation
- Rolled steel frame
- 1045 carbon steel shaft
Teco HVAC single phase TEFC motors are designed for fans, pumps, compressors, a/c blowers, heating and ventilation applications.
Marshall Wolf Automation is your authorized stocking Teco distributor!
Features Include:
- Capacitor Start, Capacitor Run
- Class F Insulation
- Automatic Reset Overload
- Class B Temperature Rise
- Designed for 40ÀöC Ambient Temperature
- Designed for 3300 ft. Elevation
- Bi-Directional Rotation
- Rolled Steel Frame
- Cast Aluminum Terminal Box
- 1045 Carbon Steel Shaft
- Aluminum Die Cast Squirrel Cage Rotor Construction
- Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
- Paint Color: Blue - Munsell 5 PB 3/8
- Double Shielded Bearings Pre-Packed with Lithium Base Grease
- No Terminals; Lead End Peel-Off Insulation
- Grounding Terminal Inside Main Box
- Stainless Steel Nameplate
- Motors are UL Recognized for United States and Canada
