Teco Westinghouse
SPHT0/24
Motor, Single Phase, .25hp, 1800rpm, 115/208/230V,56 Frame, TEFC, HVAC, NEMA Premium, IP44
$233.59

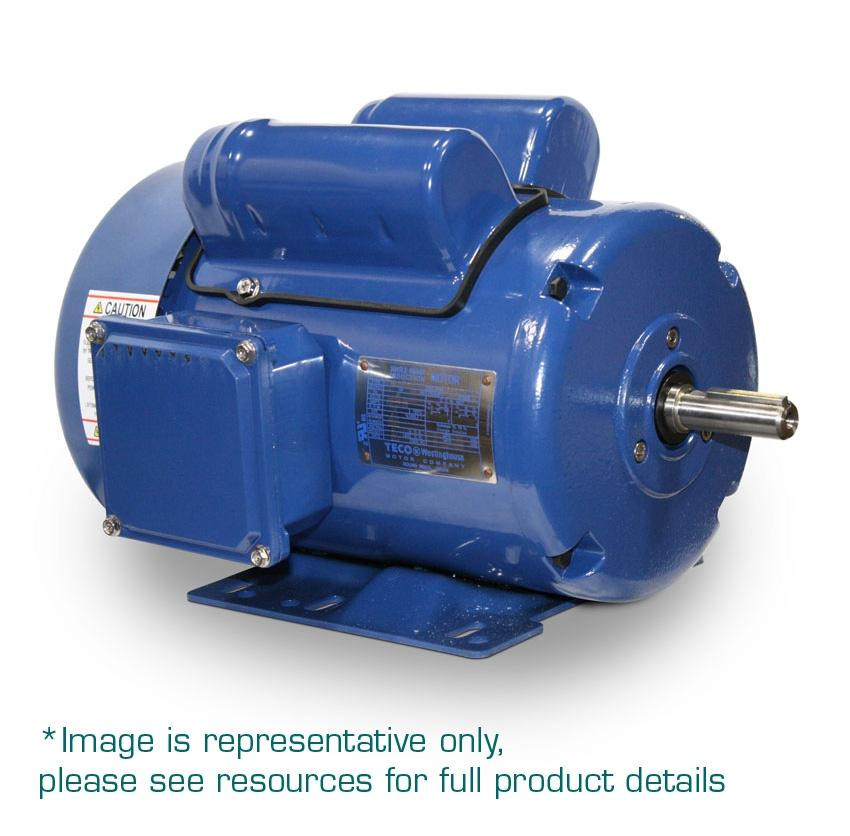

Product image is representative only, please verify specifications.
SPHT0/22
Alt: HVAC Single Phase ODP
$225.60
Motor, Single Phase, .25hp, 3600rpm, 115/208/230V,56 Frame, TEFC, HVAC, NEMA Premium, IP44
- Weight:
- 23.00 LBS
- Minimum Purchase:
- 1 unit
Description
- Available in 3600 and 1800 rpm
- TEFC - totally enclosed fan cooled, IP44
- Voltage: 115/208/230; 3hp and larger are 208-230V
- Capacitor start, capacitor run
- Class F insulation
- Designed for 40°C ambient temperature and 3300 foot elevation
- Bi-directional rotation
- Rolled steel frame
- 1045 carbon steel shaft
Teco HVAC single phase TEFC motors are designed for fans, pumps, compressors, a/c blowers, heating and ventilation applications.
Marshall Wolf Automation is your authorized stocking Teco distributor!
Features Include:
- Capacitor Start, Capacitor Run
- Class F Insulation
- Automatic Reset Overload
- Class B Temperature Rise
- Designed for 40ÀöC Ambient Temperature
- Designed for 3300 ft. Elevation
- Bi-Directional Rotation
- Rolled Steel Frame
- Cast Aluminum Terminal Box
- 1045 Carbon Steel Shaft
- Aluminum Die Cast Squirrel Cage Rotor Construction
- Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
- Paint Color: Blue - Munsell 5 PB 3/8
- Double Shielded Bearings Pre-Packed with Lithium Base Grease
- No Terminals; Lead End Peel-Off Insulation
- Grounding Terminal Inside Main Box
- Stainless Steel Nameplate
- Motors are UL Recognized for United States and Canada
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Teco Westinghouse
SPHT0/54
Motor, Single Phase, 0.5hp, 1800rpm, 115/208/230V,56 Frame, TEFC, HVAC, NEMA Premium, IP44
$252.86
Teco Westinghouse
SPHT0/72
Motor, Single Phase, .75hp, 3600rpm, 115/208/230V,56 Frame, TEFC, HVAC, NEMA Premium, IP44
$273.54
Teco Westinghouse
SPHT0/52
Motor, Single Phase, 0.5hp, 3600rpm, 115/208/230V,56 Frame, TEFC, HVAC, NEMA Premium, IP44
$252.86
Teco Westinghouse
SPHT0/34
Motor, Single Phase, 0.33hp, 1800rpm, 115/208/230V, 56 Frame, TEFC, HVAC, NEMA Premium, IP44
$249.57
Teco Westinghouse
SPHT0/32
Motor, Single Phase, 0.33hp, 3600rpm, 115/208/230V, 56 Frame, TEFC, HVAC, NEMA Premium, IP44
$233.59
Teco Westinghouse
SPHT0/74
Motor, Single Phase, .75hp, 1800rpm, 115/208/230V,56 Frame, TEFC, HVAC, NEMA Premium, IP44
$277.77
Teco Westinghouse
SPHT0022
Motor, Single Phase, 2hp, 3600rpm, 115/208/230V,56H Frame, TEFC, HVAC, NEMA Premium, IP44
$349.68
Teco Westinghouse
SPHT0024
Motor, Single Phase, 2hp, 1800rpm, 115/208/230V,56H Frame, TEFC, HVAC, NEMA Premium, IP44
$422.06
