Product image is representative only, please verify specifications.
SPHT1/52
Alt: HVAC Single Phase ODP
$321.48

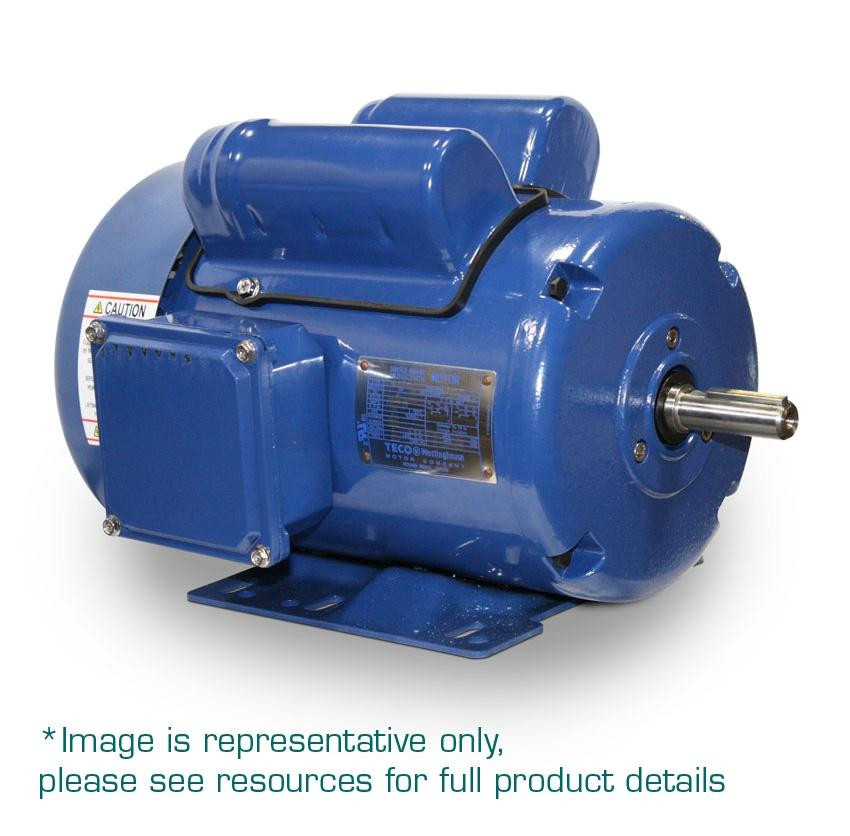

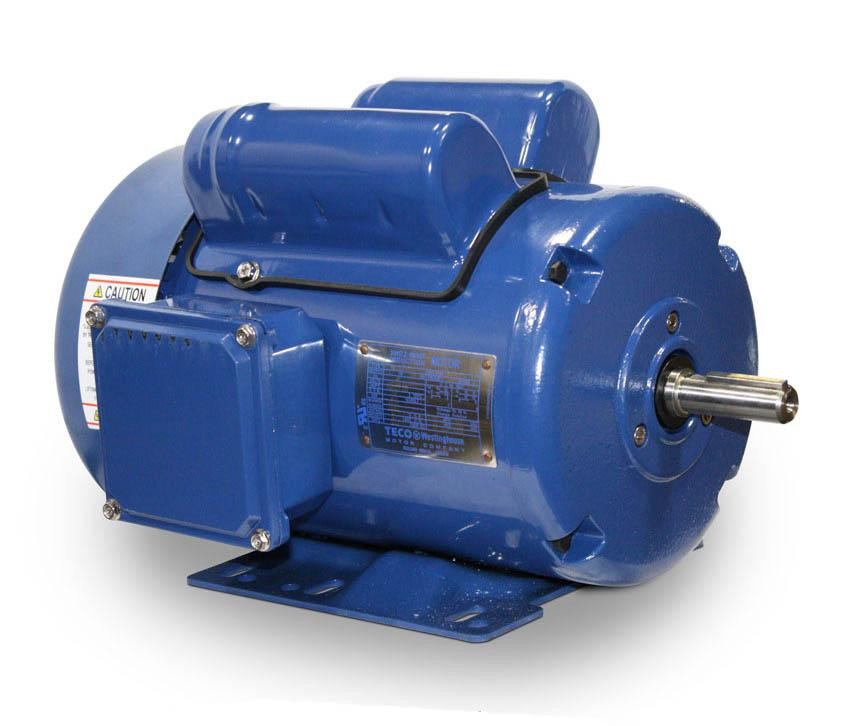

Motor, Single Phase, 1.5hp, 3600rpm, 115/208/230V,56H Frame, TEFC, HVAC, NEMA Premium, IP44
- Weight:
- 42.00 LBS
- Minimum Purchase:
- 1 unit
Configure Your Motor Starter Solution
Configure your DOL motor starter solution with guided selection of protection and control components: starters, contactor, relays and accessories
Description
- Available in 3600 and 1800 rpm
- TEFC - totally enclosed fan cooled, IP44
- Voltage: 115/208/230; 3hp and larger are 208-230V
- Capacitor start, capacitor run
- Class F insulation
- Designed for 40°C ambient temperature and 3300 foot elevation
- Bi-directional rotation
- Rolled steel frame
- 1045 carbon steel shaft
Teco HVAC single phase TEFC motors are designed for fans, pumps, compressors, a/c blowers, heating and ventilation applications.
Marshall Wolf Automation is your authorized stocking Teco distributor!
Specifications
Alternate Part Number
HVAC Single Phase ODP
Frame
56H
Horsepower
1.5 hp
Mounting
Footed (Rigid Base)
Motor Type
ODP
Phase
Single Phase
All - Specific Ratings
IP44, NEMA Premium
RPM
3600
Series
W22 HVAC
All - Voltage
115/208-230VAC
Warranty
3 Years
Weight
42.0000
Features Include:
- Capacitor Start, Capacitor Run
- Class F Insulation
- Automatic Reset Overload
- Class B Temperature Rise
- Designed for 40ÀöC Ambient Temperature
- Designed for 3300 ft. Elevation
- Bi-Directional Rotation
- Rolled Steel Frame
- Cast Aluminum Terminal Box
- 1045 Carbon Steel Shaft
- Aluminum Die Cast Squirrel Cage Rotor Construction
- Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
- Paint Color: Blue - Munsell 5 PB 3/8
- Double Shielded Bearings Pre-Packed with Lithium Base Grease
- No Terminals; Lead End Peel-Off Insulation
- Grounding Terminal Inside Main Box
- Stainless Steel Nameplate
- Motors are UL Recognized for United States and Canada
