SPT1/52

SPT1/52

Alt: W22 HVAC Series

$329.94

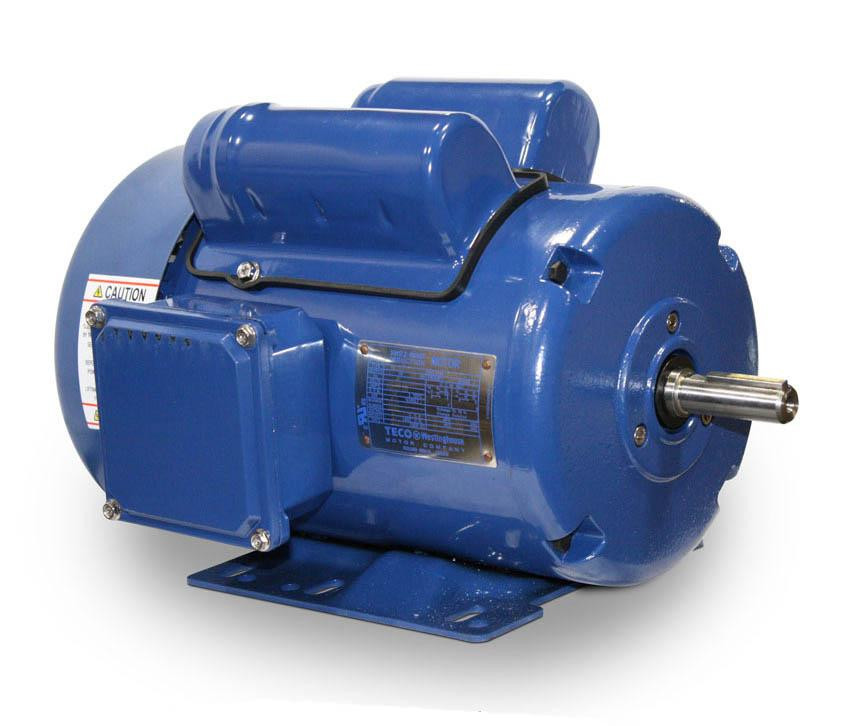

Motor, Single Phase, 1.5hp, 3600rpm, 115/208/230V, 143/145T Frame, TEFC, HVAC, NEMA Premium, IP44

Weight:
43.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
  • Available in 3600 and 1800 rpm
  • TEFC - totally enclosed fan cooled, IP44
  • Voltage: 115/208/230; 3hp and larger are 208-230V
  • Capacitor start, capacitor run
  • Class F insulation
  • Designed for 40°C ambient temperature and 3300 foot elevation
  • Bi-directional rotation
  • Rolled steel frame
  • 1045 carbon steel shaft

Teco HVAC single phase TEFC motors are designed for fans, pumps, compressors, a/c blowers, heating and ventilation applications.

Marshall Wolf Automation is your authorized stocking Teco distributor!

Specifications
Frame 143T
Horsepower 1.5 hp
Mounting Footed (Rigid Base)
Motor Type TEFC, Rolled Steel
Phase Single Phase
All - Specific Ratings IP44, NEMA Premium
RPM 3600
Series W22 HVAC
All - Voltage 115/208-230VAC
Warranty 3 Years
Alternate Part Number W22 HVAC Series
Weight 43.0000

Features Include:

  • Capacitor Start, Capacitor Run
  • Class F Insulation
  • Automatic Reset Overload
  • Class B Temperature Rise
  • Designed for 40√Ä√∂C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Bi-Directional Rotation
  • Rolled Steel Frame
  • Cast Aluminum Terminal Box
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction
  • Paint System: Phenolic Rust Proof Base Plus Lacquer Top Coat
  • Paint Color: Blue - Munsell 5 PB 3/8
  • Double Shielded Bearings Pre-Packed with Lithium Base Grease
  • No Terminals; Lead End Peel-Off Insulation
  • Grounding Terminal Inside Main Box
  • Stainless Steel Nameplate
  • Motors are UL Recognized for United States and Canada
