Teco Westinghouse
GHV0/34C
Motor, 0.33hp, 1800rpm, 56C Frame, Round Body, C-Face, 1.11 FL Amps (230V)
$211.97
Product image is representative only, please verify specifications.
S0/34C
Alt: Farm Duty Series
$343.10

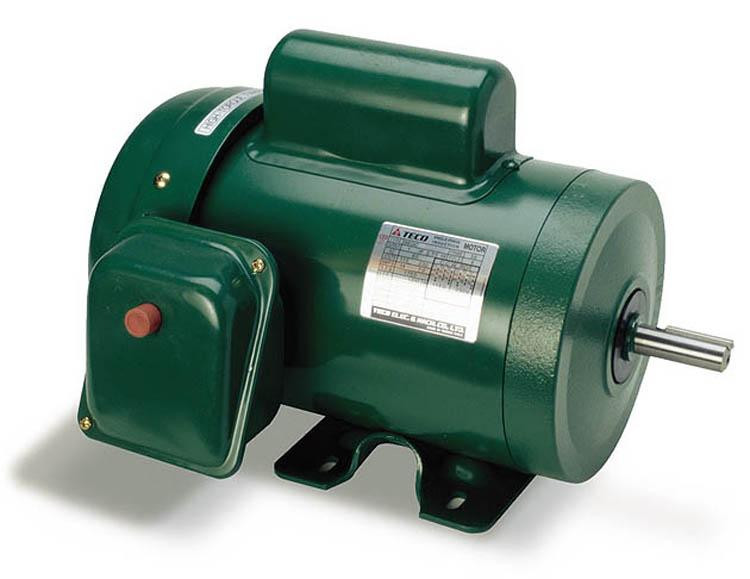

Motor, 1/3hp (0.33hp), 1800rpm, 4 Pole, 56C Frame, 115/230V, 60Hz, Single Phase, BEGCFD High Efficiency, TEFC, Rolled Steel, Footed, C-Face, IP44, Capacitor Start/Induction Run
- Weight:
- 58.00 LBS
- Minimum Purchase:
- 1 unit
Description
- Available in 3600 and 1800 rpm
- TEFC - totally enclosed fan cooled, IP44
- Voltage: 115/208/230; 3hp and larger are 208-230V
- Capacitor start, capacitor run
- Class F insulation
- Designed for 40°C ambient temperature and 3300 foot elevation
- Bi-directional rotation
- Rolled steel frame
- 1045 carbon steel shaft
Teco HVAC single phase TEFC motors are designed for fans, pumps, compressors, a/c blowers, heating and ventilation applications.
Marshall Wolf Automation is your authorized stocking Teco distributor!
- Available in 3 types; BEGCFD and BECCFD are capacitor start/induction run and BECSFD is capacitor start/permanent spit capacitor run
- Available from 1/3 to 10 hp
- Totally enclosed fan cooled (TEFC), IP44
- High torque design
- Single phase, 60Hz
- 115/230V (3 hp and larger are 230V only)
- 36 month warranty from date of manufacturer
- 1.15 service factor - continuous
- Class B insulation 1/3 to 3hp and Class F insulation from 1.5 to 10hp
- 1045 carbon steel shaft
- Available in a number of frames, in cast iron or rolled steel
