S0/54C

• Available in 3600 and 1800 rpm
• TEFC - totally enclosed fan cooled, IP44
• Voltage: 115/208/230; 3hp and larger are 208-230V
• Capacitor start, capacitor run
• Class F insulation
• Designed for 40°C ambient temperature and 3300 foot elevation
• Bi-directional rotation
• Rolled steel frame
• 1045 carbon steel shaft

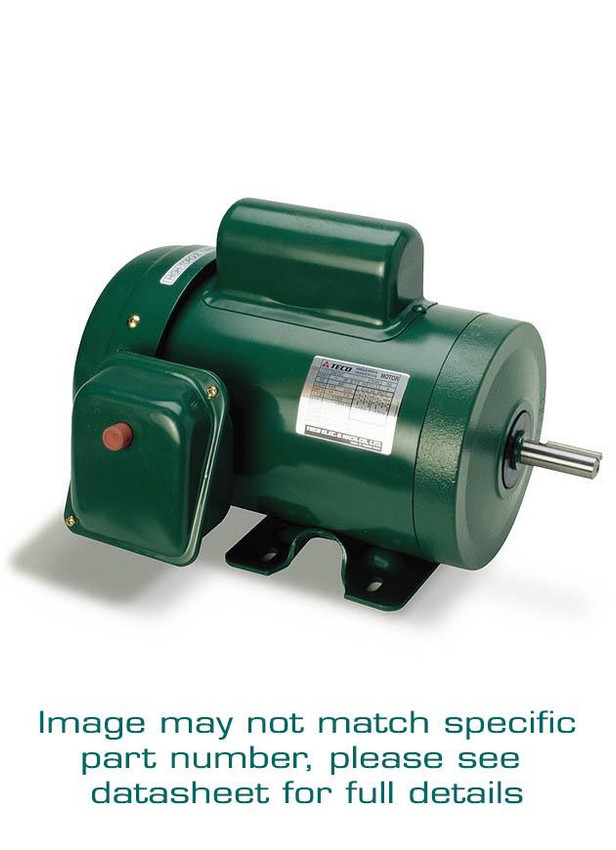

Teco HVAC single phase TEFC motors are designed for fans, pumps, compressors, a/c blowers, heating and ventilation applications.

Marshall Wolf Automation is your authorized stocking Teco distributor!

• Available in 3 types; BEGCFD and BECCFD are capacitor start/induction run and BECSFD is capacitor start/permanent spit capacitor run
• Available from 1/3 to 10 hp
• Totally enclosed fan cooled (TEFC), IP44
• High torque design
• Single phase, 60Hz
• 115/230V (3 hp and larger are 230V only)
• 36 month warranty from date of manufacturer
• 1.15 service factor - continuous
• Class B insulation 1/3 to 3hp and Class F insulation from 1.5 to 10hp
• 1045 carbon steel shaft
• Available in a number of frames, in cast iron or rolled steel

Need More Information?

• Teco Westinghouse Single Phase Product Description
• Teco Westinghouse Single Phase Induction Motor Operation Manual
