.1812EP3EAL71-W22
Weg

.1812EP3EAL71-W22

Alt: 13981165, Replacement for .1812EP3EAL71

$253.50

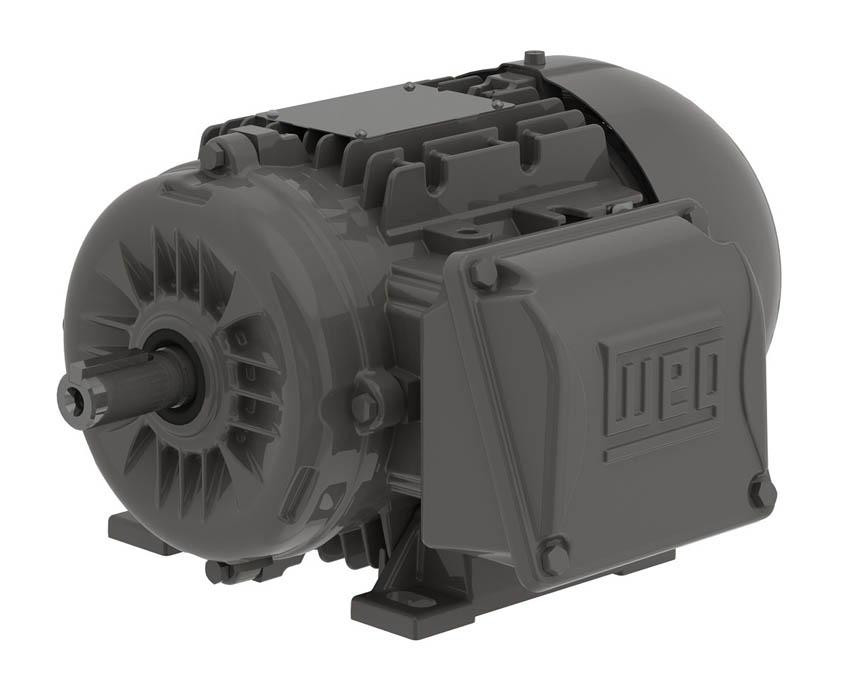

Motor IEC, .25hp, 0.18kW, 1200rpm, 3 Phase, 6-Pole, 230/460//380-415V, 60Hz, 71 Frame, Multimounting High Efficiency IC411 TEFC, Footed/No Flange, B3L(E) Mounting, Right Position Terminal Box, IP55

Weight:
22.60 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.

WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.

Features Include:

  • Frame: 71
  • Output: 0.25 HP (0.18 kW)
  • Number of Poles: 6
  • Frequency: 60 Hz
  • Synchronous speed: 1200 rpm
  • Rated speed: 1100 rpm
  • Slip: 8.33 %
  • Rated voltage: 230/460//380-415 V
  • Rated current: 1.54/0.772 A
  • L. R. Amperes: 5.40/2.70 A
  • Mounting: Foot-mounted
  • Flange: Without
  • Mounting: B3L(E)
  • Terminal box: Right position
  • Enclosure: IC411 - TEFC
