.7536ES3H56CFL-S
Alt: 14786505
$234.00

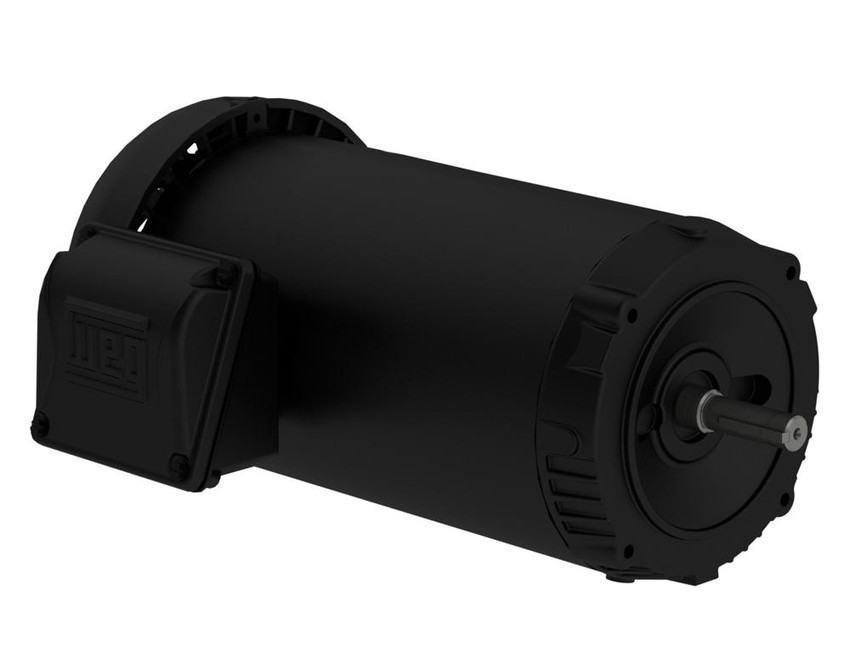

Motor, .75hp, 3600rpm, 3 Phase, 575V, 56C, TEFC Footless/C Face for Fractionals, Rolled Steel
- Weight:
- 25.00 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Features Include:
- Output Rating: 0.75 HP (0.550 kW)
- Rated Voltage: 575 V
- Rated Current: 0.904 A
- Synchronous Speed: 3600 rpm
- Rated Speed: 3475 rpm
- Rated Torque: 1.13 ft.lb
- Number of Poles: 2
- Frequency: 60 Hz
- No-Load Current: 0.440 A
- Starting Method: Direct on Line
- Mounting: Footless, F-1
- Enclosure: IC411 - TEFC
- Frame: 56C
