06018ET3E364TS-W22
Weg

06018ET3E364TS-W22

Alt: 11546979

$5,541.75

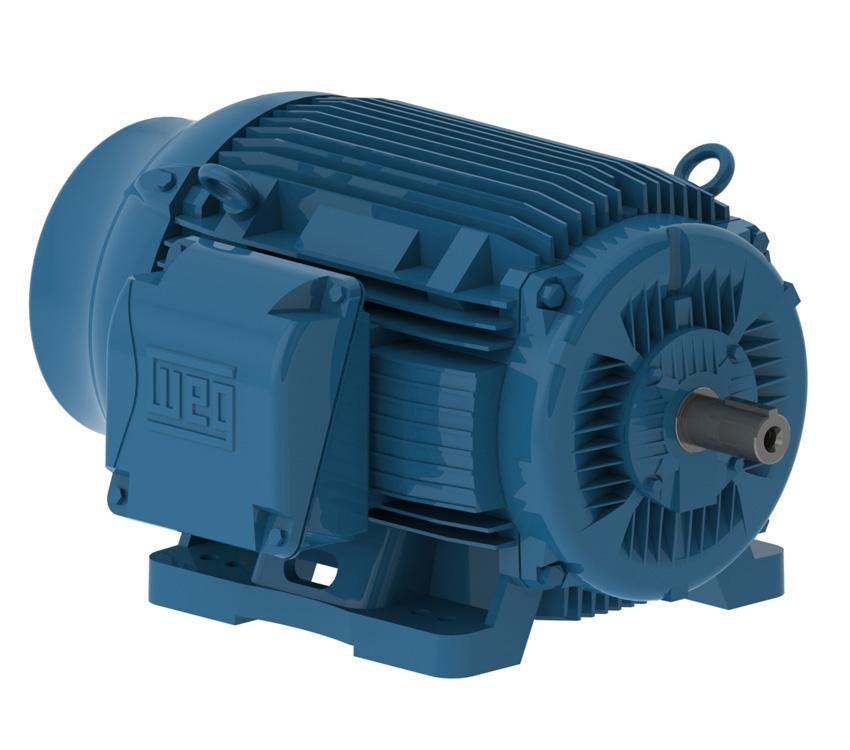

Motor, 60hp, 1800rpm, 4-Pole, 230/460//380V, 60//50Hz, 3 Phase, 364/5TS Frame, NEMA Premium Efficiency, IC411 - TEFC Enclosure, Footed, No Flange, F-1 Mounting, Left Position Terminal Box, IP55

Weight:
986.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.

WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.

Features Include:

  • Standard: NEMA MG-1
  • Frequency: 60//50 Hz
  • Voltage: 230/460//380 V
  • Number of poles: 4
  • Degree of Protection: IP55
  • Synchronous speed: 1800 rpm
  • Rated current: 143/71.6 A
  • L. R. Amperes: 888/444 A
  • No load current: 52.0/26.0 A
  • Rated torque: 177 ft.lb
  • Output rating: 60 HP
  • Mounting: Foot-mounted
  • Flange: Without
  • Mounting: F-1
  • Terminal box¹: Left position
  • Enclosure: IC411 - TEFC
