00518ET3E184JP-W22
Weg

00518ET3E184JP-W22

Alt: 11535672

$870.75

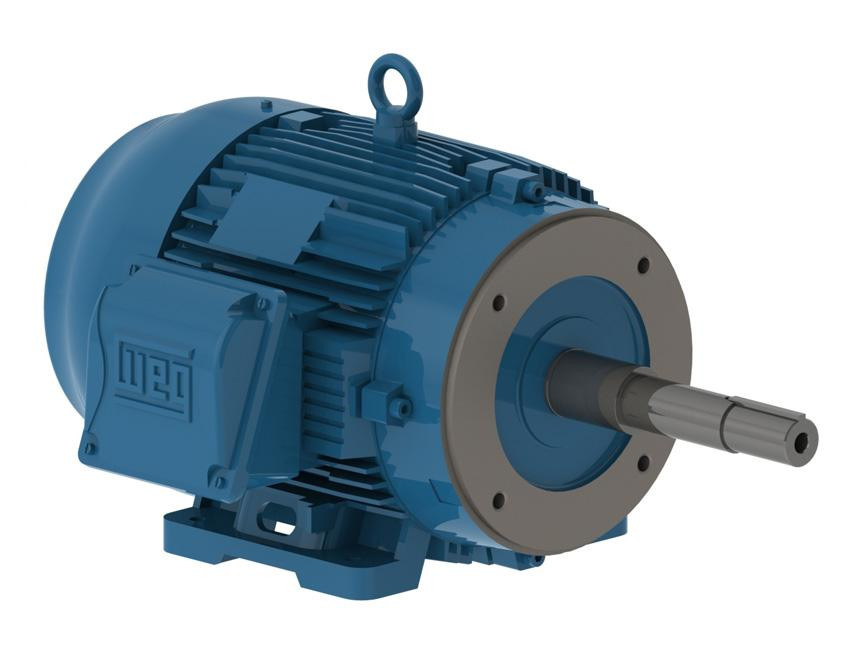

Motor, 5hp, 1800rpm, 4-Pole, 230/460//380V, 60//50Hz, 182/4JP Frame, W22 Close Coupled Pump JP NEMA Premium Efficiency, IC411 TEFC, Footed, C Flange, F-1 Mounting, Left Position Terminal Box, IP55 (Cannot Ship UPS, Drop Ship Only Via Truck)

Weight:
111.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.

WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.

Features Include:

  • Standard: NEMA MG-1
  • Frequency: 60//50 Hz
  • Voltage: 230/460//380 V
  • Number of poles: 4
  • Degree of Protection: IP55
  • Synchronous speed: 1800 rpm
  • Rated current: 12.9/6.45 A
  • L. R. Amperes: 96.7/48.4 A
  • Output rating: 5 HP
  • Mounting: Foot-mounted
  • Flange: C
  • Mounting: F-1
  • Terminal box¹: Left position
  • Enclosure: IC411 - TEFC
