Product image is representative only, please verify specifications.
1311017192
Alt: 14418879
$1,319.36

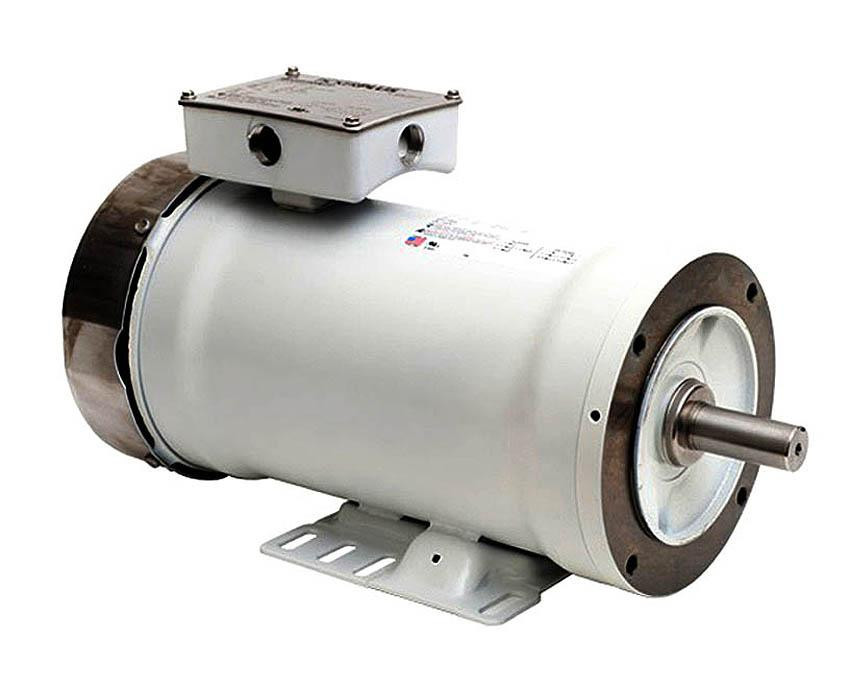

Motor, 3hp, 1800rpm, 4-Pole, 145TC, 3 Phase, 230/460V, 60Hz, Wash Down PickerPlus NEMA Premium Efficiency, Rolled Steel, TEFC, Footed/C-Flange, Terminal Box F-1 Left Position, IP66
- Weight:
- 68.00 LBS
- Minimum Purchase:
- 1 unit
Description
Motor, 3hp, 1800rpm, 3-Phase 230/460V, 145TC, Wash Down, PickerPlus, TEFC C-Face Foot Mount
Features Include:
- Three Phase Design
- Continuous duty
- Insulation system Class F inverter duty
- Encapsulated Windings
- 1.0 Service Factor
- IP 66 Rated
- Double-Row ball bearings
- Stainless steel shaft
- Output Rating: 3 HP
- FL Amps: 8.80/4.40
- RPM: 1725 rpm, 4 Pole
- Frequency: 60 Hz
- Enclosure: TEFC
- Frame: 145TC
- Frame Material: Stainless Steel
- Approximate Shipping Weight (lbs.): 68 lbs
