35018ET3HKD580Z-W22
Weg

35018ET3HKD580Z-W22

Alt: Crusher Duty

$30,922.50

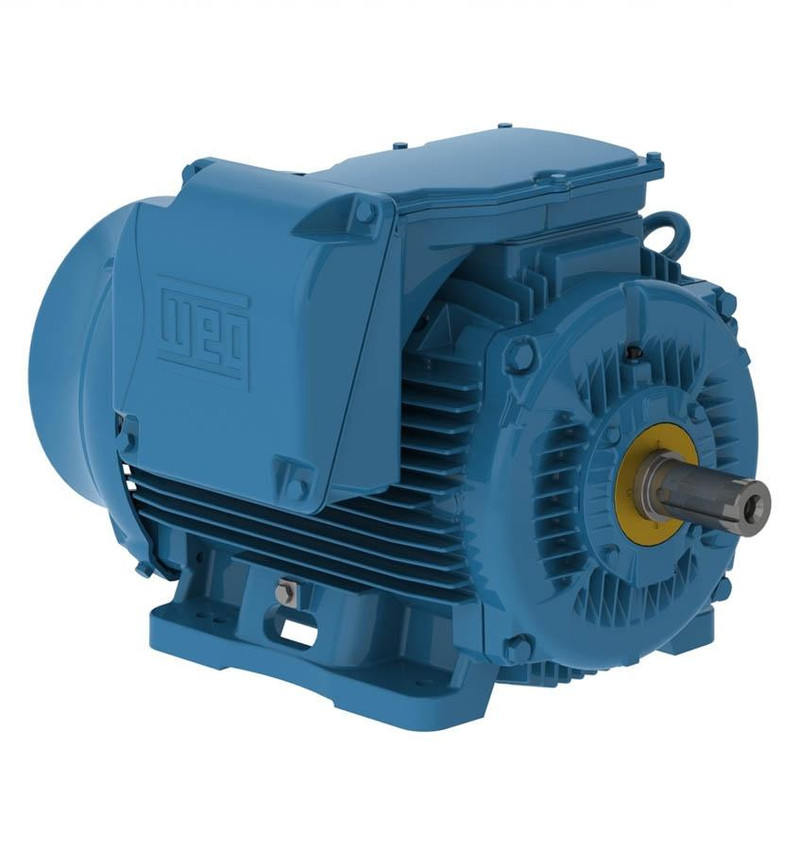

Motor, 350hp, 1800rpm, 3 Phase, 575V, 586/7Z, Severe Duty, Crusher Duty, TEFC Foot Mount

Weight:
4,572.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Weg's Crusher Duty motors are designed for your most demanding crusher applications!

  • Three phase
  • TEFC-NEMA Premium
  • Mount horizontally or vertically
  • Exceptional high starting and breakdown torques
  • W22 cast iron platform
  • Superior cooling system and solid feet for cool operation and low vibration and noise
  • Oversized roller bearings

Need a crusher duty soft starter? Search Weg's TPH2 series now!

Features Include:

Output Rating:

  • 350 HP (260 kW)

Rated Voltage:

  • 575 V

Rated Current:

  • 327 A

Synchronous Speed:

  • 1800 rpm

Rated Speed:

  • 1786 rpm

Rated Torque:

  • 1020 ft.lb

Number of Poles: 4

Frequency: 60 Hz

No-Load Current: 128 A

Starting Method:

  • Direct On Line

Mounting:

  • Foot-Mounted, F-1

Enclosure:

  • IC411 - TEFC

Frame: 586/7TZ

Frame Material: Cast Iron
