02212ET3Y200L-W22
Weg

02212ET3Y200L-W22

Alt: 11567431

$3,693.00

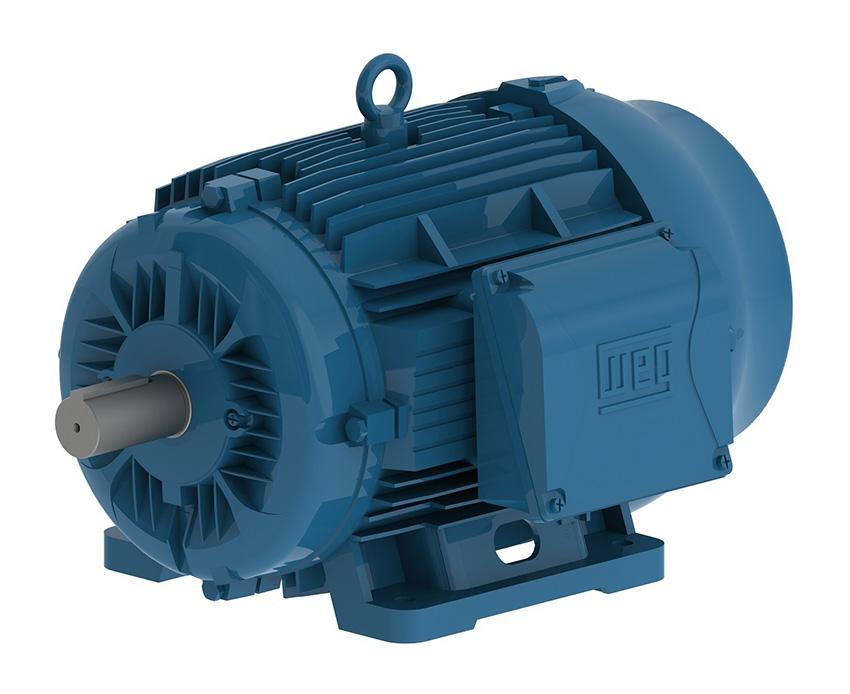

Motor, 30hp, 22kW, 1200rpm, 6-Pole, Three Phase, 460//380-415V, 60Hz, 200L Frame, IC411 TEFC Enclosure, Footed/No Flange, B3L(E) Mounting, Right Position Terminal Box, IP55, W22 Tru-Metric IE3, (Drop Ship Only via Truck)

Weight:
603.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.

WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.

Features Include:

  • Standard: NEMA MG-1
  • Frequency: 60/50 Hz
  • Voltage: 460//380-415 V
  • Number of poles: 6
  • Degree of Protection: IP55
  • Synchronous speed: 1200 rpm
  • Output rating: 30 HP
  • Mounting: Foot-mounted
  • Flange: Without
  • Mounting: B3L(E)
  • Terminal box¹: Right position
  • Enclosure: IC411 - TEFC
  • Frame: 200L
  • Rated current: 37.1 A
  • L. R. Amperes: 271 A
  • No load current: 18.4 A
  • Rated torque: 133 ft.lb
