Weg
45018ET3GKD586/7-W22

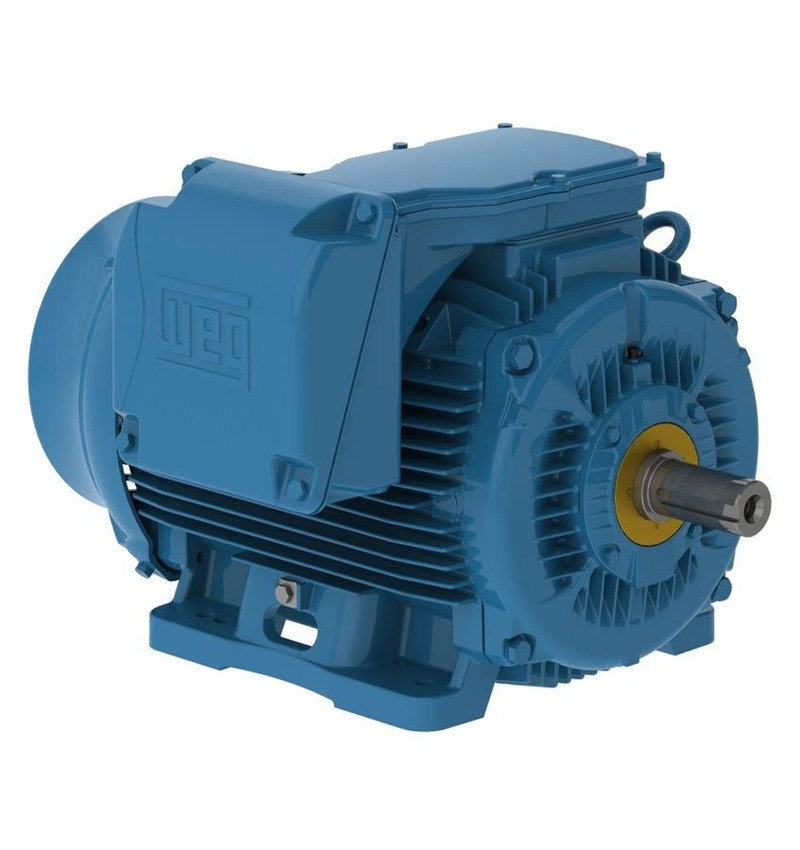

Motor, 450hp, 1800rpm, 3 Phase, 460V, 586/7T, Severe Duty, Crusher Duty, TEFC Foot Mount
$36,039.75
30009ET3GKD586/7-W22
Alt: 13500620; Crusher Duty
$43,991.25
Motor, 300hp, 900rpm, 3 Phase, 460V, 586/7T, Severe Duty, Crusher Duty, TEFC Foot Mount
- Weight:
- 5,696.00 LBS
- Minimum Purchase:
- 1 unit
Description
Weg's Crusher Duty motors are designed for your most demanding crusher applications!
- Three phase
- TEFC-NEMA Premium
- Mount horizontally or vertically
- Exceptional high starting and breakdown torques
- W22 cast iron platform
- Superior cooling system and solid feet for cool operation and low vibration and noise
- Oversized roller bearings
Need a crusher duty soft starter? Search Weg's TPH2 series now!
Features Include:
Output Rating:
- 300 HP (220 kW)
Rated Voltage:
- 460 V
Rated Current:
- 356 A
Synchronous Speed:
- 900 rpm
Rated Speed:
- 895 rpm
Rated Torque:
- 1740 ft.lb
Number of Poles: 8
Frequency: 60 Hz
No-Load Current: 150 A
Starting Method:
- Direct On Line
Mounting:
- Foot-Mounted, F-1
Enclosure:
- IC411 - TEFC
Frame: 586/7T
Frame Material: Cast Iron
Need More Information?
- Weg W22 Three-Phase Electrical Motor Brochure
- Weg W22 Three-Phase Electric Motor Technical Catalog
- Weg Three-Phase General Purpose Motor Catalog
- Weg Three-Phase General Purpose Motor Instruction Manual
- Weg Three-Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
- 'Extend to a 3 Year Warranty' Form
