Weg
00736ET3E213T-W22

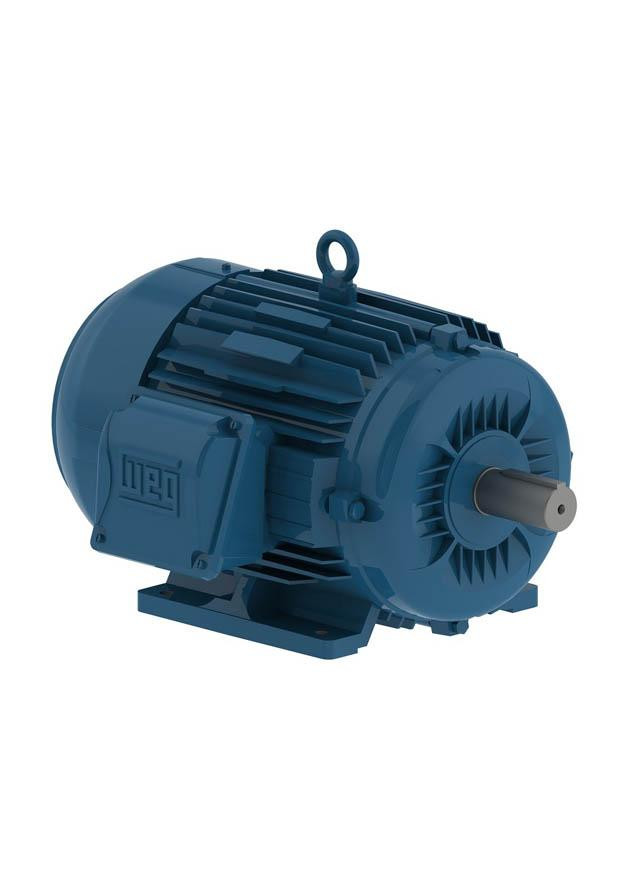

Motor, 7.5hp, 3600rpm, 3 Phase, 208-230/460V, 213/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty
$843.75
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
00736ET3E213T-S
Alt: 12630851
$735.00
Motor, 7.5hp, 3600rpm, 3 Phase, 208-230/460V, 213/5T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel
- Weight:
- 143.00 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Choose Your Motor Starter Solution
Build your motor starter system with knowledgeable guidance on selecting your components, including starters, contactors, relays, and accessories.
Description
Motor, 3 Phase, 7.5hp, 3600rpm, TEFC, Foot Mount, Rolled Steel, 208-230/460V, 213T Frame
Specifications
Alternate Part Number
12630851
Horsepower
7.5 hp
Mounting
Footed (Rigid Base)
Motor Type
TEFC, Rolled Steel
Phase
Three Phase
All - Specific Ratings
NEMA Premium
RPM
3600
Series
W01 Rolled Steel
All - Voltage
460/480VAC
Warranty
18 Months
Weight
143
Product Features:
Frame
- 213/5T
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 3530 rpm
No Load Current
- 3.32-6.63/3.32 A
Rated Current
- 19.2-17.3/8.67 A
Rated Torque
- 1.52
Frame Material
- Rolled Steel
Approx. Weight
- 60.4 lb
Downloads
- Weg Rolled Steel Line Motor Catalog
- Weg New Rolled Steel Platform Motor Brochure
- Weg Three Phase General Purpose Motor Catalog
- Weg Three Phase General Purpose Motor Instruction Manual
- Weg Three Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg CWB Contactors Catalog
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
