Weg
04018ET3E324T-W22

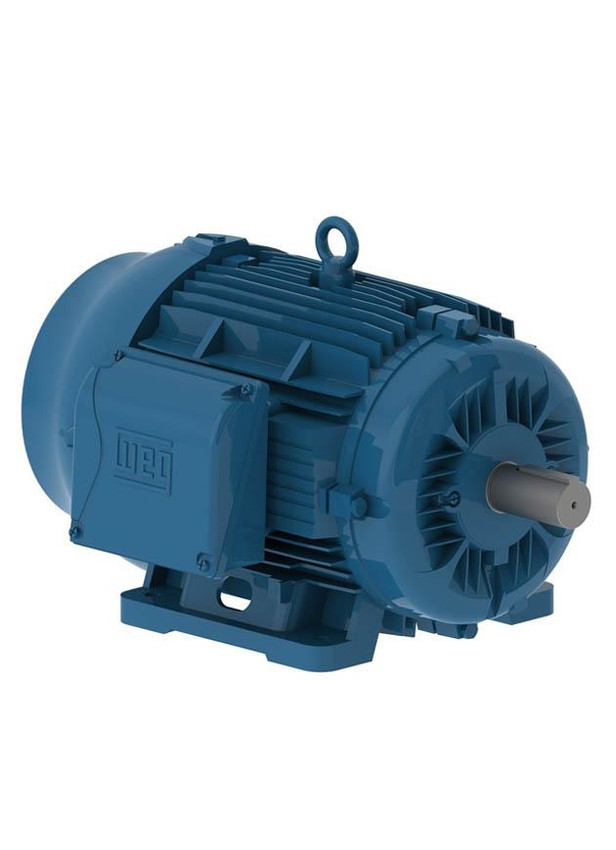

Motor, 40hp, 1800rpm, 4-Pole, Three Phase, 208-230/460V, 60//50Hz, 324/6T Frame, NEMA Premium Efficiency TEFC, Footed, No Flange, Heavy Duty, (Cannot Ship UPS, Drop Ship Only Via Truck)
$3,133.50
04018ET3E324TS-W22
Alt: 12448085
$3,133.50
Motor, 40hp, 1800rpm, 3 Phase, 208-230/460V, 324/6TS, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty
- Weight:
- 613.00 LBS
- Minimum Purchase:
- 1 unit
Description
Please note that motors do not qualify for free shipping.
Severe duty is standard with WEG W22 motors!
- All WEG W22 motors are Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture.
- Other IP ratings are available as well
- All NEMA Premium ratings have a 1.25 service factor (up to 100 HP) resulting in cooler operation and extended life of the motor
- All Cast Iron Construction, including Terminal Box and Fan Cover
- Solid feet for reduced vibration levels and impact absortion
- Optimized ventilation system for cooler operation and extended life
- High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
- Exclusive W-Seal 364T and larger provides superior bearing protection
- Taconite Labyrinth seal 586 Frame and larger
- Exclusive WEG painting system exceed 200hrs ASTM 117 corrosion test (Exceeds IEEE841 standard)
- Balanced to 0.08 inches per second vibration limits (Meets IEEE841 standard)
- Four Bolt Conduit Cover with glued Neoprene Gasket
- Impregnation Resin and magnet wire are insulation class H
- Stainless Steel Nameplate - Laser edged with high contrast background
- Corrosion Proof Drains g Inverter Duty per NEMA MG1, Part 31
- Certified Class I Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G
Product Features:
Frame
- 324/6TS
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1775 rpm
No Load Current
- 16.0-32.0/16.0 A
Rated Current
- 104-94.2/47.1 A
Rated Torque
- 117 ft.lb
Frame Material
- Cast Iron
Approx. Weight
- 582 lb
