00312ET3E213T-S

00312ET3E213T-S

Alt: 12675413

$737.25

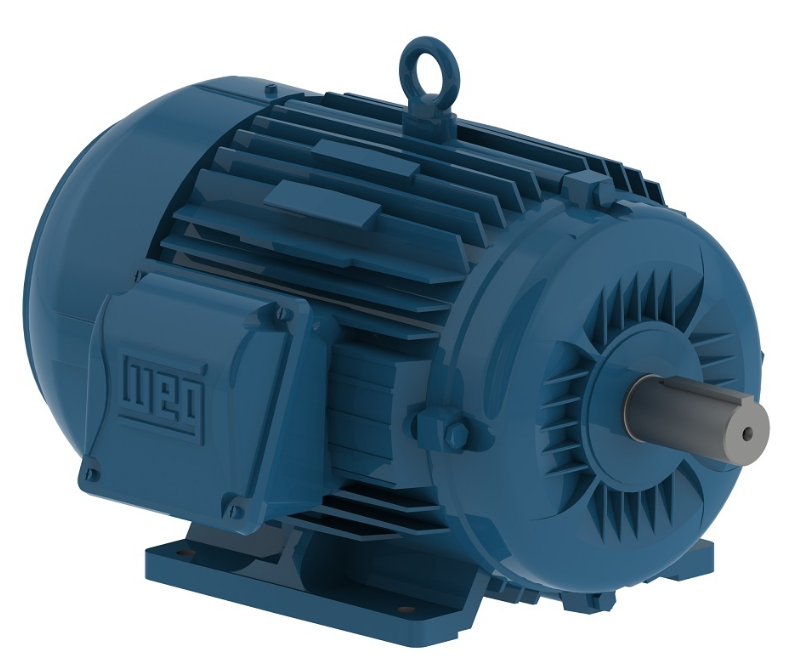

Motor, 3hp, 1200rpm, 3 Phase, 208-230/460V, 213/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel

Weight:
134.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Motor, 3 Phase, 3hp, 1200rpm, TEFC, Foot Mount, Rolled Steel, 208-230/460V, 213T Frame
Specifications
Alternate Part Number 12675413
Horsepower 3 hp
Mounting Footed (Rigid Base)
Motor Type TEFC, Rolled Steel
Phase Three Phase
All - Specific Ratings NEMA Premium
RPM 1200
Series W01 Rolled Steel
All - Voltage 460/480VAC
Warranty 18 Months
Weight 134.0000

Product Features:

Frame

  • 213/5T

Rated Voltage

  • 208-230/460 V

Frequency

  • 60 Hz

Rated Speed

  • 1175 rpm

No Load Current

  • 2.36-4.71/2.36 A

Rated Current

  • 9.22-8.34/4.17 A

Rated Torque

  • 1.83

Frame Material

  • Rolled Steel

Approx. Weight

  • 56.4 lb
