Weg
00312ET3E213TC-W22

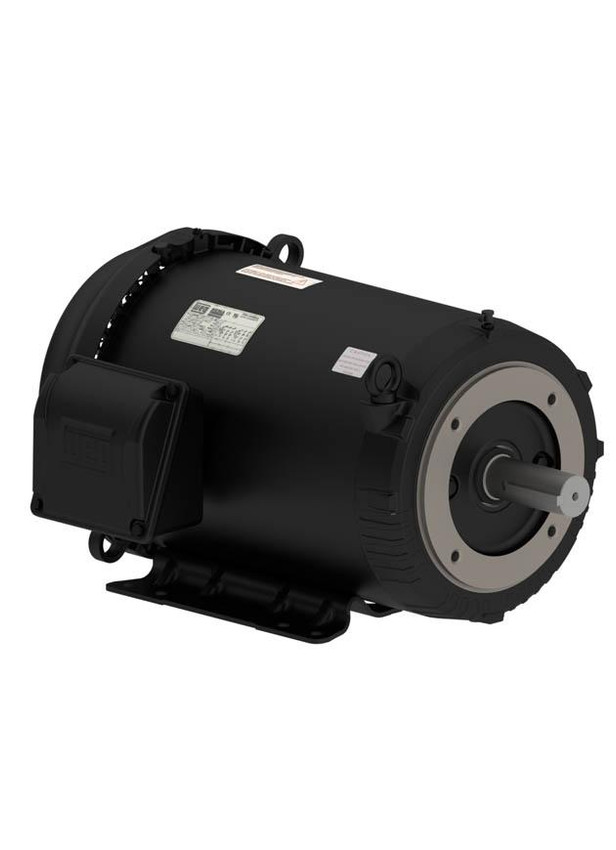

Motor, 3hp, 1200rpm, 3 Phase, 208-230/460V, 213/5TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty W-22
$885.00
00312ET3E213TC-S
Alt: 12675387
$771.00
Motor, 3hp, 1200rpm, 3 Phase, 208-230/460V, 213/5TC, NEMA Premium Efficiency TEFC, Footed/C Face, Rolled Steel
- Weight:
- 148.00 LBS
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 3hp, 1200rpm, C-Face, Foot Mount, Rolled Steel, 208-230/460V, 213TC Frame,
Product Features:
Frame
- 213/5TC
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1175 rpm
No Load Current
- 2.36-4.71/2.36 A
Rated Current
- 9.22-8.34/4.17 A
Rated Torque
- 1.83
Frame Material
- Rolled Steel
Approx. Weight
- 62.9 lb
Need More Information?
- Weg Rolled Steel Line Motor Catalog
- Weg New Rolled Steel Platform Motor Brochure
- Weg Three Phase General Purpose Motor Catalog
- Weg Three Phase General Purpose Motor Instruction Manual
- Weg Three Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg CWB Contactors Catalog
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
