03036ET3E286TSC-W22
Weg

03036ET3E286TSC-W22

Alt: 11440288

$2,744.25

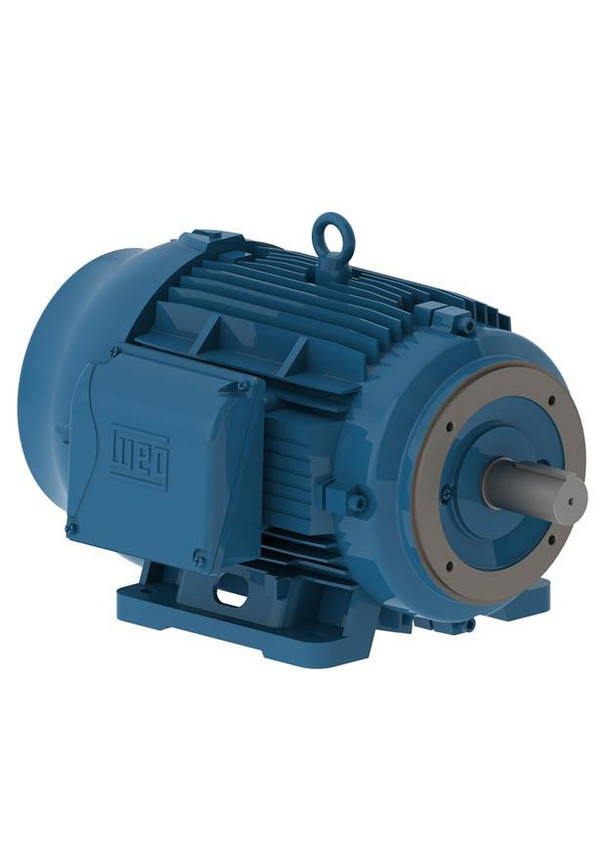

Motor, 30hp, 3600rpm, 3 Phase, 208-230/460V, 284/6TSC, NEMA Premium Efficiency, TEFC, Footed/C Face, Heavy Duty

Weight:
436.80 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Please note that motors do not qualify for free shipping.

Severe duty is standard with WEG W22 motors!

  • All WEG W22 motors are Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture.
  • Other IP ratings are available as well
  • All NEMA Premium ratings have a 1.25 service factor (up to 100 HP) resulting in cooler operation and extended life of the motor
  • All Cast Iron Construction, including Terminal Box and Fan Cover
  • Solid feet for reduced vibration levels and impact absortion
  • Optimized ventilation system for cooler operation and extended life
  • High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
  • Exclusive W-Seal 364T and larger provides superior bearing protection
  • Taconite Labyrinth seal 586 Frame and larger
  • Exclusive WEG painting system exceed 200hrs ASTM 117 corrosion test (Exceeds IEEE841 standard)
  • Balanced to 0.08 inches per second vibration limits (Meets IEEE841 standard)
  • Four Bolt Conduit Cover with glued Neoprene Gasket
  • Impregnation Resin and magnet wire are insulation class H
  • Stainless Steel Nameplate - Laser edged with high contrast background
  • Corrosion Proof Drains g Inverter Duty per NEMA MG1, Part 31
  • Certified Class I Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G

Product Features:

Frame

  • 284/6TSC

Rated Voltage

  • 208-230/460 V

Frequency

  • 60 Hz

Rated Speed

  • 3535 rpm

No Load Current

  • 8.50-17.0/8.50 A

Rated Current

  • 74.7-67.6/33.8 A

Rated Torque

  • 44.0 ft.lb

Frame Material

  • Cast Iron

Approx. Weight

  • 403 lb
