03036ET3H286TSC-W22
Weg

03036ET3H286TSC-W22

Alt: 11611672

$2,744.25

Motor, 30hp, 3600rpm, 3 Phase, 575V, 284/6TSC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty

Weight:
436.30 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Please note that motors do not qualify for free shipping.

Severe duty is standard with WEG W22 motors!

  • All WEG W22 motors are Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture.
  • Other IP ratings are available as well
  • All NEMA Premium ratings have a 1.25 service factor (up to 100 HP) resulting in cooler operation and extended life of the motor
  • All Cast Iron Construction, including Terminal Box and Fan Cover
  • Solid feet for reduced vibration levels and impact absortion
  • Optimized ventilation system for cooler operation and extended life
  • High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
  • Exclusive W-Seal 364T and larger provides superior bearing protection
  • Taconite Labyrinth seal 586 Frame and larger
  • Exclusive WEG painting system exceed 200hrs ASTM 117 corrosion test (Exceeds IEEE841 standard)
  • Balanced to 0.08 inches per second vibration limits (Meets IEEE841 standard)
  • Four Bolt Conduit Cover with glued Neoprene Gasket
  • Impregnation Resin and magnet wire are insulation class H
  • Stainless Steel Nameplate - Laser edged with high contrast background
  • Corrosion Proof Drains g Inverter Duty per NEMA MG1, Part 31
  • Certified Class I Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G

Product Features:

Frame

  • 284/6TSC

Rated Voltage

  • 575 V

Frequency

  • 60 Hz

Rated Speed

  • 3535 rpm

No Load Current

  • 6.80 A

Rated Current

  • 27.0 A

Rated Torque

  • 44.0 ft.lb

Frame Material

  • Cast Iron

Approx. Weight

  • 401 lb
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Weg

02509ST3QIE326T-W22

Motor, 25hp, 18.5kW, 880rpm, 8-Pole, Three Phase, 460V, 60Hz, 324/6T Cast Iron Frame, NEMA Premium Efficiency, IC411 TEFC, Footed/No Flange, F-1 Mounting, Left Position Terminal Box, IP55 (Cannot Ship UPS, Drop Ship Only via Truck)

$6,628.50

Weg

05012ET3E365T-W22

Motor, 50hp, 1200rpm, 3 Phase, 208-230/460V, 364/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty

$6,388.50

Weg

02536ET3E284TS-W22

Motor, 25hp, 3600rpm, 3 Phase, 208-230/460V, 284/6TS, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty

$2,248.50

Weg

00512ET3H215T-W22

Motor, 5hp, 1200rpm, 3 Phase, 575V, 213/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty

$999.00

Weg

04018ET3H324T-W22

Motor, 40hp, 1800rpm, 3 Phase, 575V, 324/6T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty

$3,133.50

Weg

02536ET3E284TSC-W22

Motor, 25hp, 3600rpm, 3 Phase, 208-230/460V, 284/6TSC, NEMA Premium Efficiency, TEFC, Footed/C Face, Heavy Duty

$2,322.00

Weg

20012ET3GKD505Z-W22

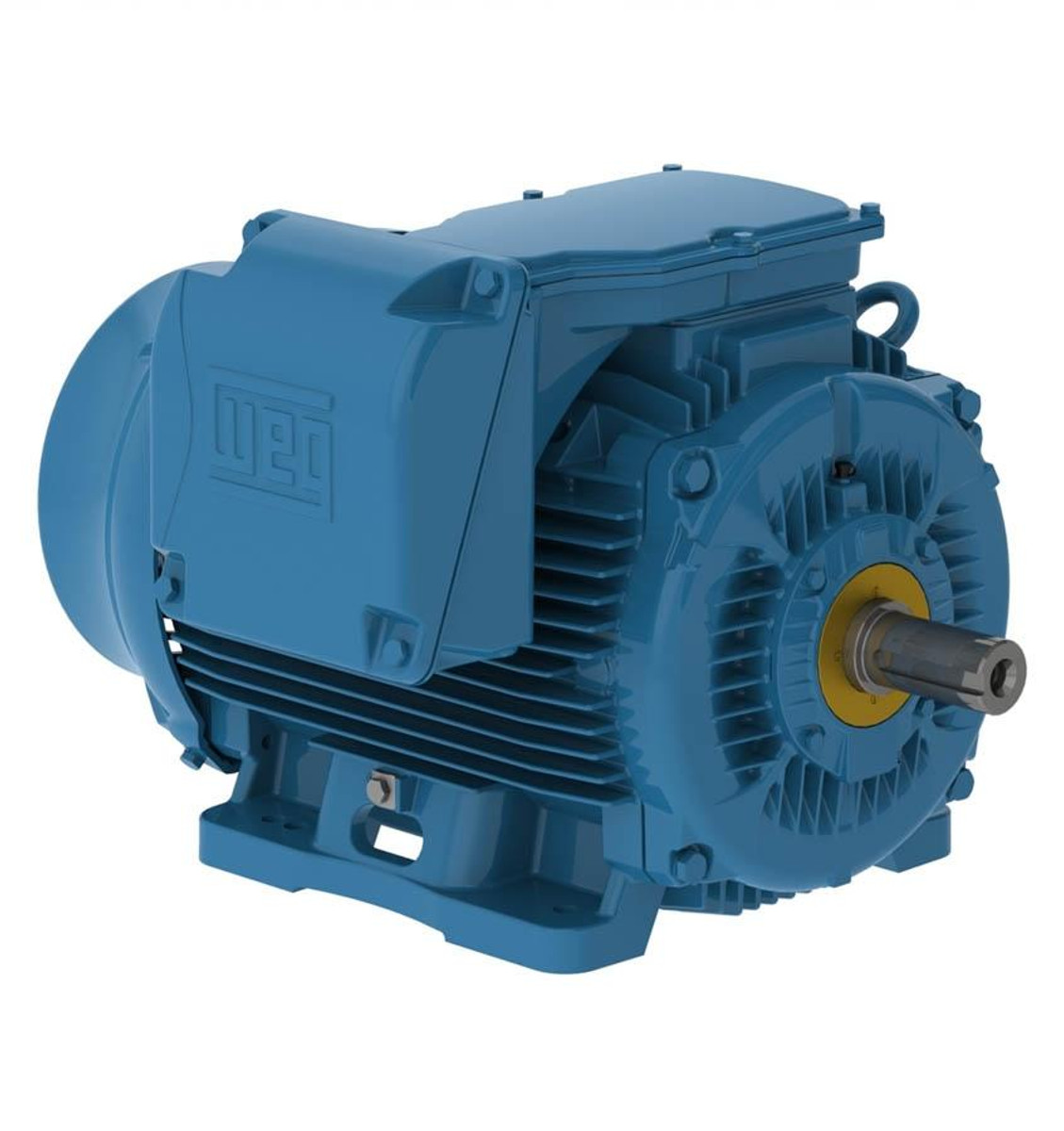

Motor, 200hp, 1200rpm, 3 Phase, 460V, 504/5Z, Severe Duty, Crusher Duty, TEFC Foot Mount
