Weg
03018ET3E286TS-W22

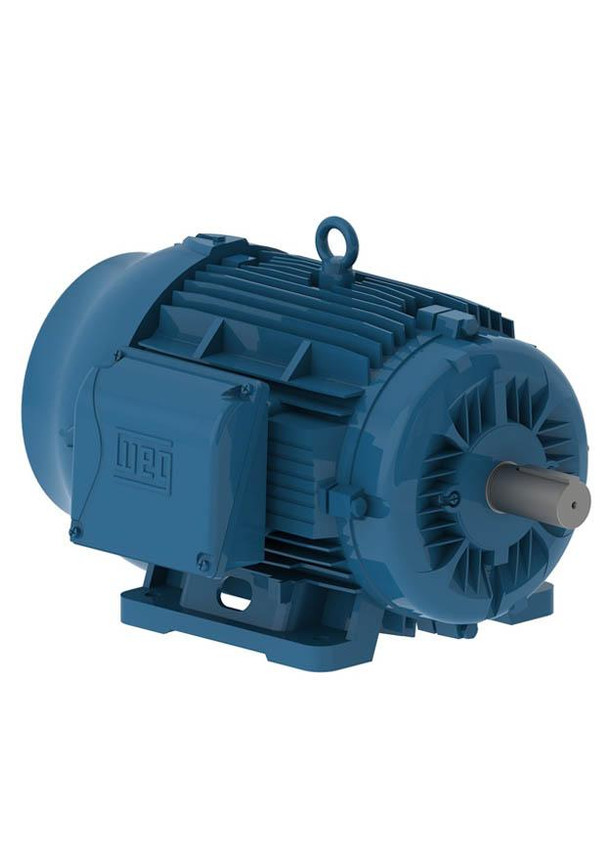

Motor, 30hp, 1800rpm, 3 Phase, 208-230/460V, 284/6TS, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty
$2,417.25
03018ET3E286T-W22
Alt: 11443945
$2,417.25
Motor, 30hp, 1800rpm, 3 Phase, 208-230/460V, 284/6T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty
- Weight:
- 480.50 LBS
- Minimum Purchase:
- 1 unit
Description
Please note that motors do not qualify for free shipping.
Severe duty is standard with WEG W22 motors!
- All WEG W22 motors are Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture.
- Other IP ratings are available as well
- All NEMA Premium ratings have a 1.25 service factor (up to 100 HP) resulting in cooler operation and extended life of the motor
- All Cast Iron Construction, including Terminal Box and Fan Cover
- Solid feet for reduced vibration levels and impact absortion
- Optimized ventilation system for cooler operation and extended life
- High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
- Exclusive W-Seal 364T and larger provides superior bearing protection
- Taconite Labyrinth seal 586 Frame and larger
- Exclusive WEG painting system exceed 200hrs ASTM 117 corrosion test (Exceeds IEEE841 standard)
- Balanced to 0.08 inches per second vibration limits (Meets IEEE841 standard)
- Four Bolt Conduit Cover with glued Neoprene Gasket
- Impregnation Resin and magnet wire are insulation class H
- Stainless Steel Nameplate - Laser edged with high contrast background
- Corrosion Proof Drains g Inverter Duty per NEMA MG1, Part 31
- Certified Class I Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G
Product Features:
Frame
- 284/6T
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1765 rpm
No Load Current
- 13.0-26.0/13.0 A
Rated Current
- 77.6-70.2/35.1 A
Rated Torque
- 88.1 ft.lb
Frame Material
- Cast Iron
Approx. Weight
- 448 lb
