Weg
00236ET3H145T-W22
Motor, 2hp, 3600rpm, 3 Phase, 575V, 143/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty
$443.25
00236ET3H145T-S
Alt: 12682585
$385.50
Motor, 2hp, 3600rpm, 3 Phase, 575V, 143/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel
- Weight:
- 49.50 LBS
- Minimum Purchase:
- 1 unit
Description

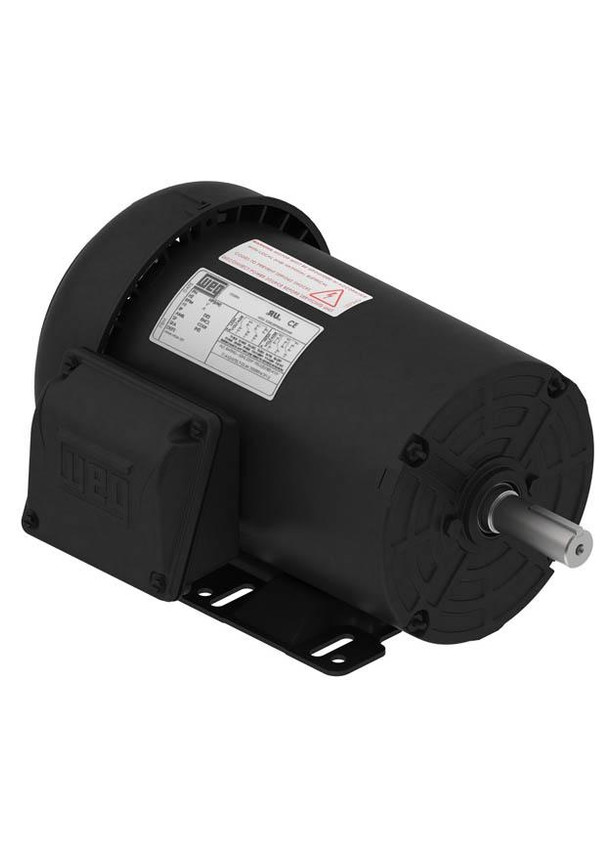

Motor, 3 Phase, 2hp, 3600rpm, TEFC, Foot Mount, Rolled Steel, 575V, 145T Frame
Product Features:
Frame
- 143/5T
Rated Voltage
- 575 V
Frequency
- 60 Hz
Rated Speed
- 3520 rpm
No Load Current
- 0.850 A
Rated Current
- 1.98 A
Rated Torque
- 2.94 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 40.6 lb
Need More Information?
- Weg Rolled Steel Line Motor Catalog
- Weg New Rolled Steel Platform Motor Brochure
- Weg Three Phase General Purpose Motor Catalog
- Weg Three Phase General Purpose Motor Instruction Manual
- Weg Three Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg CWB Contactors Catalog
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
