00336OT3E145T-S
Weg

00336OT3E145T-S

Alt: 12617115

$408.75

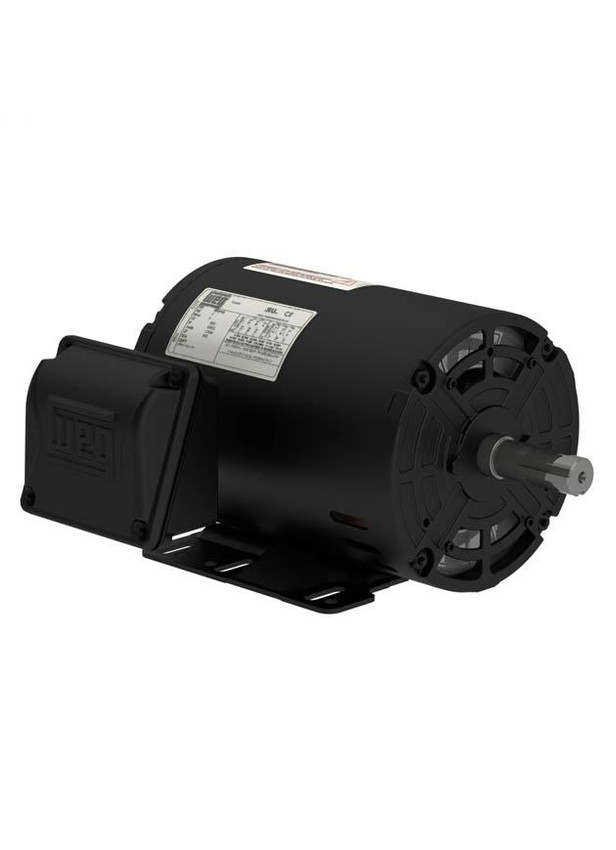

Motor, 3hp, 3600rpm, 3 Phase, 208-230/460V, 143/5T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel

Weight:
47.30 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Motor, 3 Phase, 2hp, 3600rpm, ODP, Foot Mount, Rolled Steel, 208-230/460V, 145T Frame

Product Features:

Frame

  • 143/5T

Rated Voltage

  • 208-230/460 V

Frequency

  • 60 Hz

Rated Speed

  • 3480 rpm

No Load Current

  • 1.30-2.60/1.30 A

Rated Current

  • 7.94-7.18/3.59 A

Rated Torque

  • 4.47 ft.lb

Frame Material

  • Rolled Steel

Approx. Weight

  • 40.6 lb
