00512OT3E215T-S
Weg

00512OT3E215T-S

Alt: 12674877

$792.75

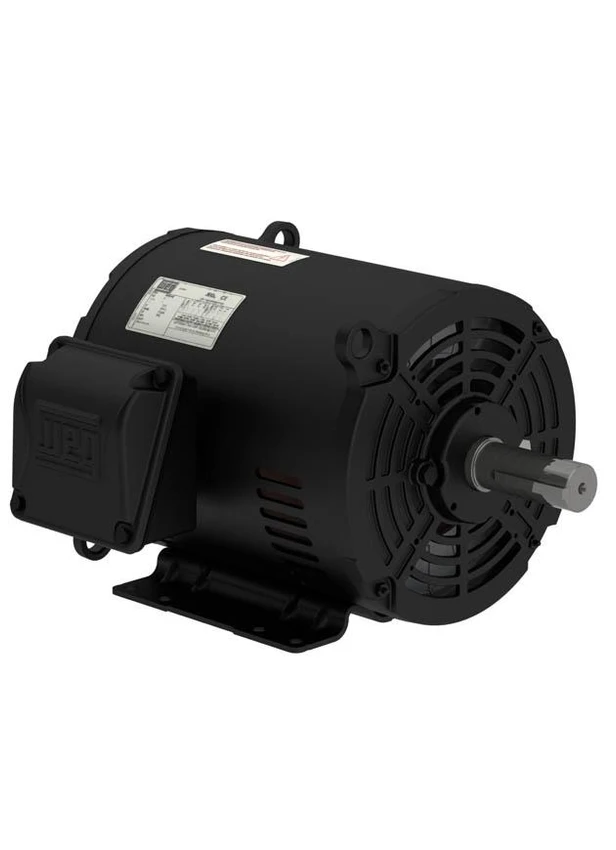

Motor, 5hp, 1200rpm, 3 Phase, 208-230/460V, 213/5T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel

Weight:
135.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Motor, 3 Phase, 2hp, 1200rpm, ODP, Foot Mount, Rolled Steel, 208-230/460V, 215T Frame

Product Features:

Frame

  • 213/5T

Rated Voltage

  • 208-230/460 V

Frequency

  • 60 Hz

Rated Speed

  • 1175 rpm

No Load Current

  • 3.55-7.10/3.55 A

Rated Current

  • 14.9-13.5/6.74 A

Rated Torque

  • 3.05

Frame Material

  • Rolled Steel

Approx. Weight

  • 56.8 lb
