Weg
00212ET3E184TC-W22

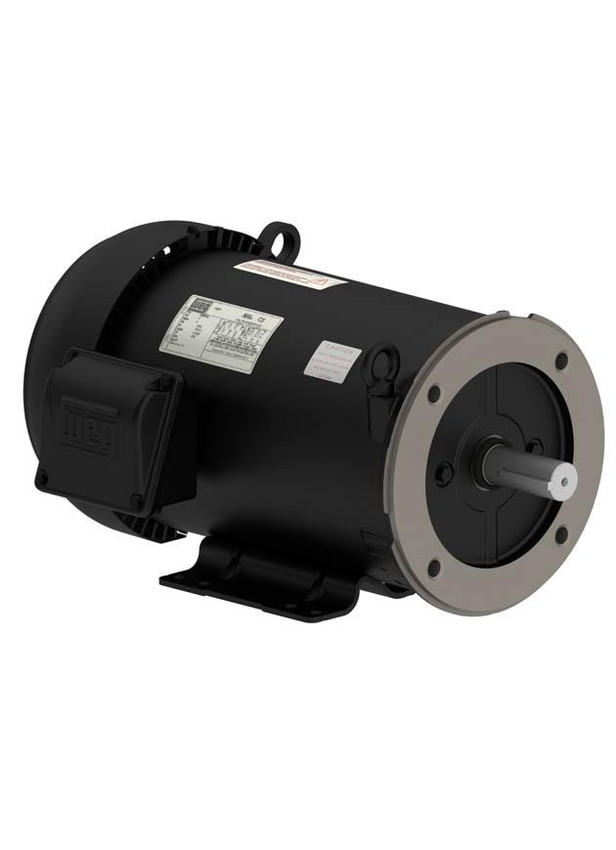

Motor, 2hp, 1200rpm, 3 Phase, 208-230/460V, 182/4TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty W-22
$642.75
00212ET3E184TC-S
Alt: 12675385
$560.25
Motor, 2hp, 1200rpm, 3 Phase, 208-230/460V, 182/4TC, NEMA Premium Efficiency TEFC, Footed/C Face, Rolled Steel
- Weight:
- 96.00 LBS
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 2hp, 1200rpm, C-Face, Foot Mount, Rolled Steel, 208-230/460V, 184TC Frame,
Product Features:
Frame
- 182/4TC
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1170 rpm
No Load Current
- 1.87-3.74/1.87 A
Rated Current
- 6.63-6.00/3.00 A
Rated Torque
- 8.86 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 89.8 lb
