Weg
02018ET3E256T-S
Motor, 20hp, 1800rpm, 3 Phase, 208-230/460V, 254/6T, Rolled Steel NEMA Premium Efficiency TEFC, Footed/No Flange, F-1 Mounting, Left Position Terminal Box, IP55
$1,438.50
02018ET3E256T-W22
Alt: 11438008
$1,650.75

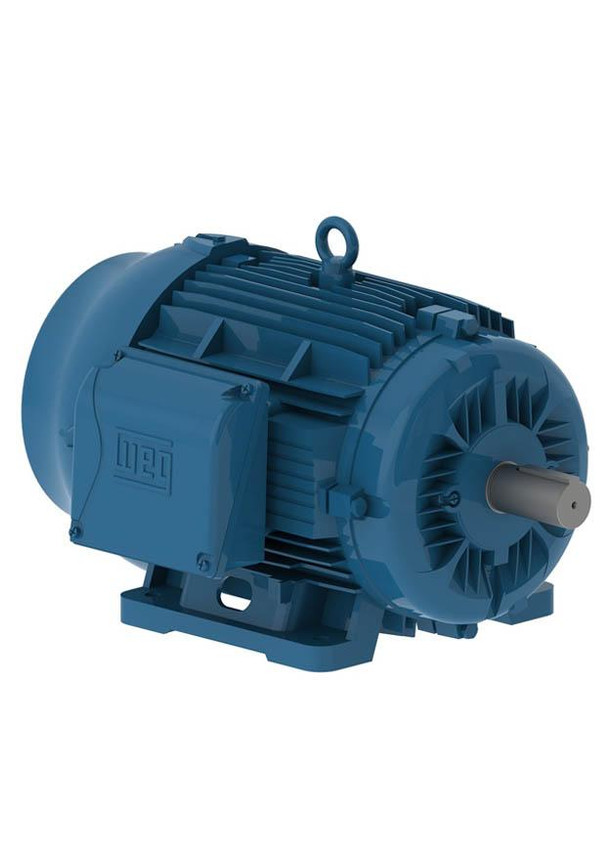

Motor, 20hp, 1800rpm, 3 Phase, 208-230/460V, 254/6T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty
- Weight:
- 383.20 LBS
- Minimum Purchase:
- 1 unit
Description
Please note that motors do not qualify for free shipping.
Severe duty is standard with WEG W22 motors!
- All WEG W22 motors are Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture.
- Other IP ratings are available as well
- All NEMA Premium ratings have a 1.25 service factor (up to 100 HP) resulting in cooler operation and extended life of the motor
- All Cast Iron Construction, including Terminal Box and Fan Cover
- Solid feet for reduced vibration levels and impact absortion
- Optimized ventilation system for cooler operation and extended life
- High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
- Exclusive W-Seal 364T and larger provides superior bearing protection
- Taconite Labyrinth seal 586 Frame and larger
- Exclusive WEG painting system exceed 200hrs ASTM 117 corrosion test (Exceeds IEEE841 standard)
- Balanced to 0.08 inches per second vibration limits (Meets IEEE841 standard)
- Four Bolt Conduit Cover with glued Neoprene Gasket
- Impregnation Resin and magnet wire are insulation class H
- Stainless Steel Nameplate - Laser edged with high contrast background
- Corrosion Proof Drains g Inverter Duty per NEMA MG1, Part 31
- Certified Class I Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G
Product Features:
Frame
- 254/6T
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1765 rpm
No Load Current
- 10.0-20.0/10.0 A
Rated Current
- 53.3-48.2/24.1 A
Rated Torque
- 58.7 ft.lb
Frame Material
- Cast Iron
Approx. Weight
- 360 lb
