00118ET3E143T-W22
Weg

00118ET3E143T-W22

Alt: 11723868

$395.25

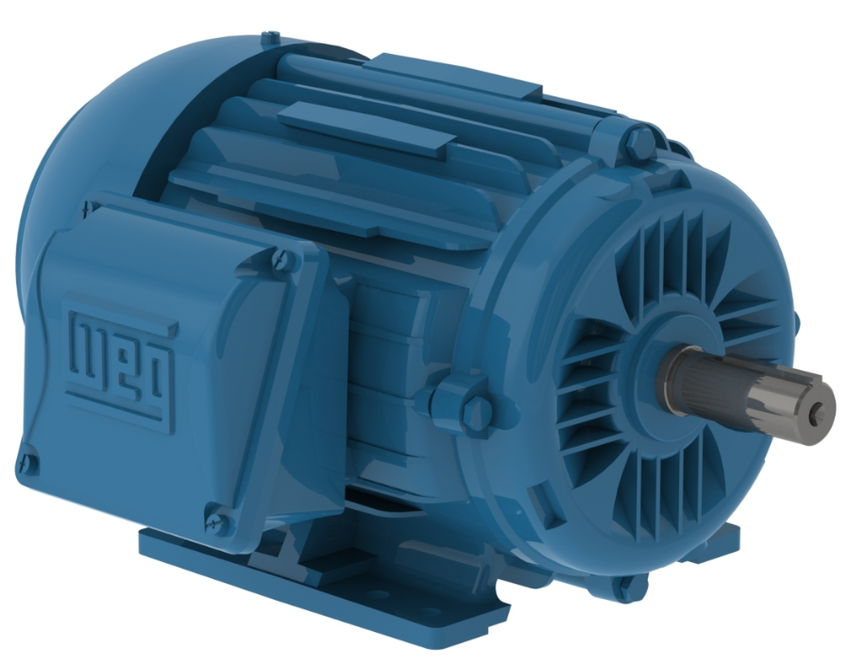

Motor, 1hp, 1800rpm, 3 Phase, 208-230/460V, 143/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Heavy Duty

Weight:
52.80 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Please note that motors do not qualify for free shipping.

Severe duty is standard with WEG W22 motors!

  • All WEG W22 motors are Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture.
  • Other IP ratings are available as well
  • All NEMA Premium ratings have a 1.25 service factor (up to 100 HP) resulting in cooler operation and extended life of the motor
  • All Cast Iron Construction, including Terminal Box and Fan Cover
  • Solid feet for reduced vibration levels and impact absortion
  • Optimized ventilation system for cooler operation and extended life
  • High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
  • Exclusive W-Seal 364T and larger provides superior bearing protection
  • Taconite Labyrinth seal 586 Frame and larger
  • Exclusive WEG painting system exceed 200hrs ASTM 117 corrosion test (Exceeds IEEE841 standard)
  • Balanced to 0.08 inches per second vibration limits (Meets IEEE841 standard)
  • Four Bolt Conduit Cover with glued Neoprene Gasket
  • Impregnation Resin and magnet wire are insulation class H
  • Stainless Steel Nameplate - Laser edged with high contrast background
  • Corrosion Proof Drains g Inverter Duty per NEMA MG1, Part 31
  • Certified Class I Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G

Product Features:

Frame

  • 143/5T

Rated Voltage

  • 208-230/460 V

Frequency

  • 60 Hz

Rated Speed

  • 1760 rpm

No Load Current

  • 0.940-1.88/0.940 A

Rated Current

  • 3.07-2.94/1.47 A

Rated Torque

  • 2.94 ft.lb

Frame Material

  • Cast Iron

Approx. Weight

  • 45.1 lb
