00118ET3E143T-S
Alt: 12655083
$344.25

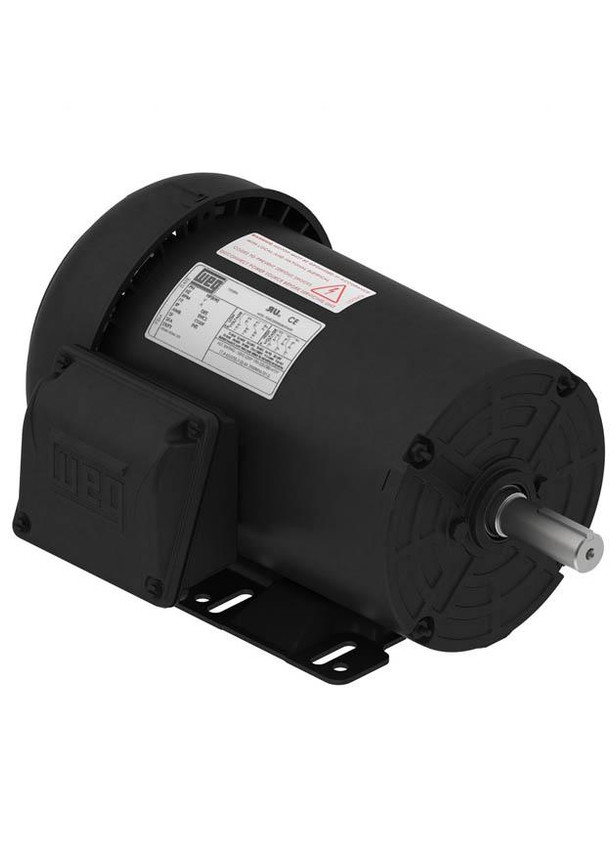

Motor, 1hp, 1800rpm, 3 Phase, 208-230/460V, 143/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel
- Weight:
- 46.20 LBS
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 1hp, 1800rpm, TEFC, Foot Mount, Rolled Steel, 208-230/460V, 143T Frame
Product Features:
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1765 rpm
Rated Current
- 3.25-2.94/1.47 A
Rated Torque
- 2.94 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 38.3 lb
