00112ET3E145T-S
Alt: 12675408
$396.75

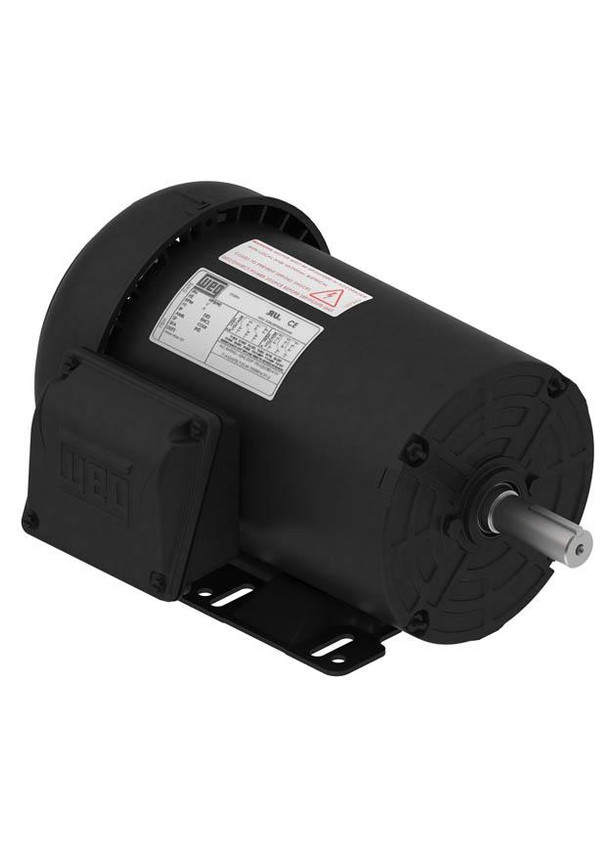

Motor, 1hp, 1200rpm, 3 Phase, 208-230/460V, 143/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel
- Weight:
- 47.30 LBS
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 1hp, 1200rpm, TEFC, Foot Mount, Rolled Steel, 208-230/460V, 145T Frame
Product Features:
Frame
- 143/5T
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1145 rpm
No Load Current
- 1.01-2.03/1.01 A
Rated Current
- 3.49-3.16/1.58 A
Rated Torque
- 4.52 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 38.9 lb
