Weg
01536ET3E254T-S
Motor, 15hp, 3600rpm, 3 Phase, 208-230/460V, 254/6T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel
$1,191.75
00152OT3E182T-S
Alt: 13459655
$441.00
Motor, 1.5hp, 1200rpm, 3 Phase, 208-230/460V, 182/4T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel
- Weight:
- 63.00 LBS
- Minimum Purchase:
- 1 unit
Description

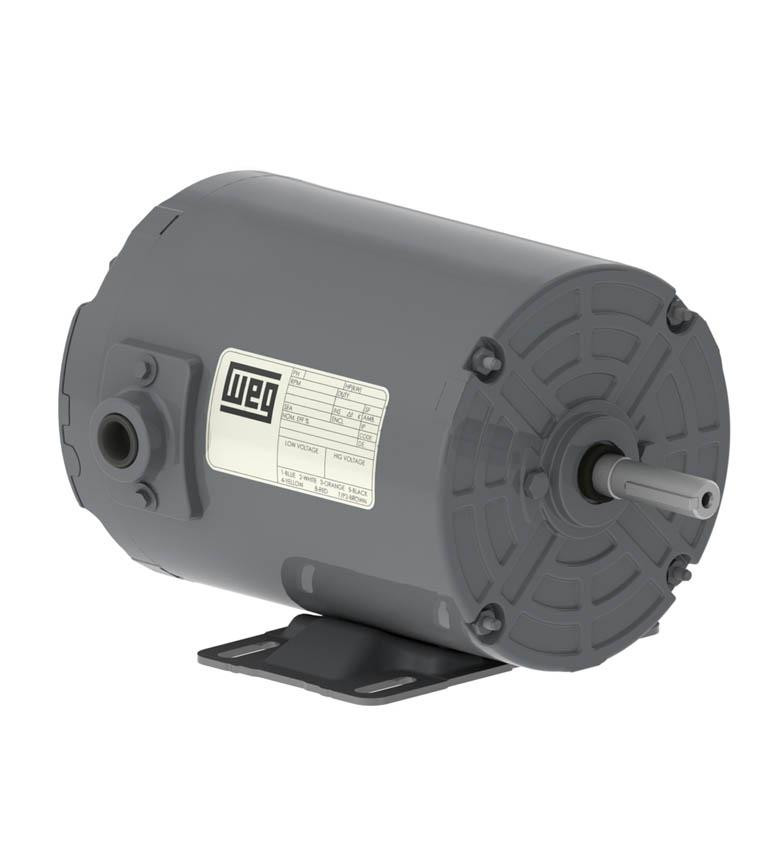

Motor, 3 Phase, 1hp, 1200rpm, ODP, Foot Mount, Rolled Steel, 208-230/460V, 182T Frame
Product Features:
Frame
- 182/4T
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1165 rpm
No Load Current
- 1.37-2.74/1.37 A
Rated Current
- 4.98-4.50/2.25 A
Rated Torque
- 0.922 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 25.9 lb
Need More Information?
- Weg Rolled Steel Line Motor Catalog
- Weg New Rolled Steel Platform Motor Brochure
- Weg Three Phase General Purpose Motor Catalog
- Weg Three Phase General Purpose Motor Instruction Manual
- Weg Three Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg CWB Contactors Catalog
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
