Weg
01536ET3E254TC-W22

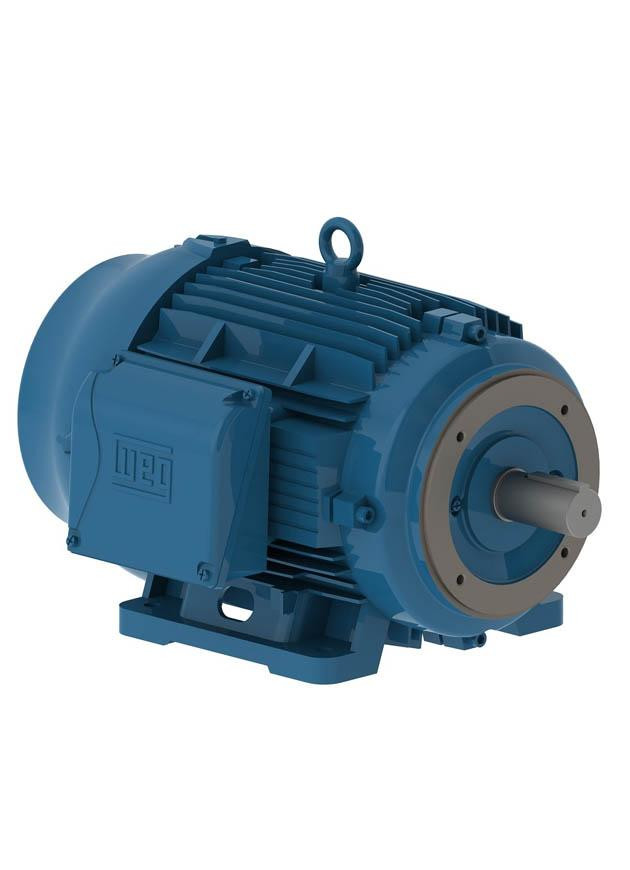

Motor, 15hp, 3600rpm, 3 Phase, 208-230/460V, 254/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty
$1,419.75
01536ET3E254TC-S
Alt: 14122240
$1,236.75

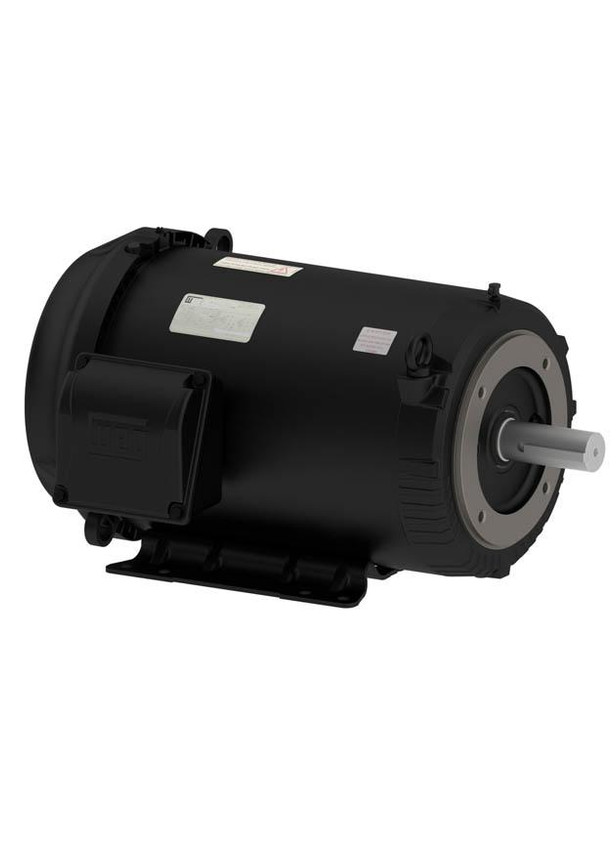

Motor, 15hp, 3600rpm, 3 Phase, 208-230/460V, 254/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Rolled Steel
- Weight:
- 216.00 LBS
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 15hp, 3600rpm, C-Face, Foot Mnt, Rolled Steel, 208-230/460V, 254TC Frame,
Product Features:
Frame
- 254/6TC
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1745 rpm
No Load Current
- 6.50-13.0/6.50 A
Rated Current
- 38.5-34.8/17.4 A
Rated Torque
- 22.0 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 195 lb
