Weg
01518ET3E254TC-W22

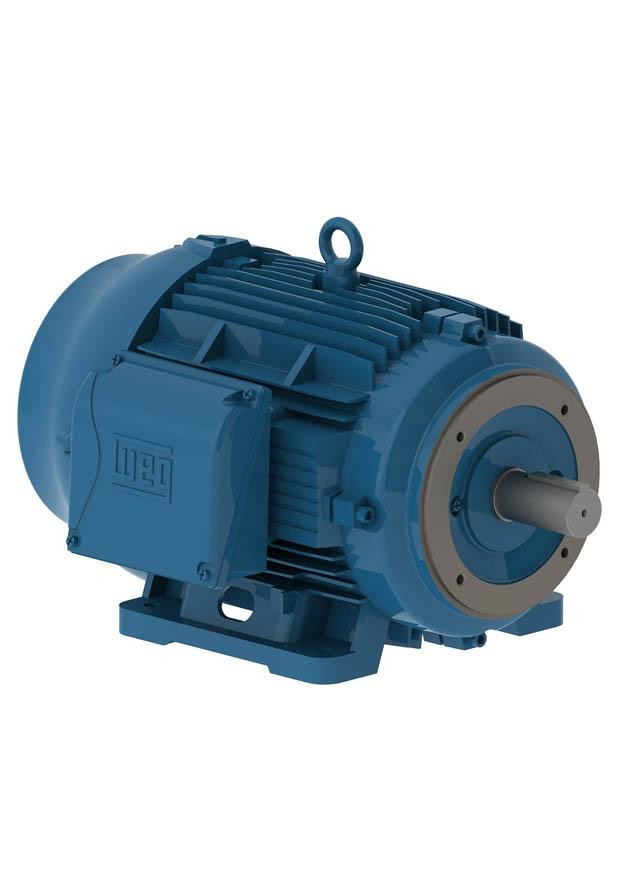

Motor, 15hp, 1800rpm, 3 Phase, 208-230/460V, 254/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Heavy Duty
$1,437.75
Available Now!
Available Now!
(1 in stock)
01518ET3E254TC-S
Alt: 14122313
$1,252.50
Motor, 15hp, 1800rpm, 3 Phase, 208-230/460V, 254/6TC, NEMA Premium Efficiency TEFC, Footed/C Face, Rolled Steel
- Weight:
- 248.00 LBS
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 15hp, 1800rpm, C-Face, Foot Mnt, Rolled Steel, 208-230/460V, 254TC Frame,
Product Features:
Frame
- 254/6TC
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1745 rpm
No Load Current
- 8.65-17.3/8.65 A
Rated Current
- 40.2-36.4/18.2 A
Rated Torque
- 43.9 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 227 lb
Need More Information?
- Weg Rolled Steel Line Motor Catalog
- Weg New Rolled Steel Platform Motor Brochure
- Weg Three Phase General Purpose Motor Catalog
- Weg Three Phase General Purpose Motor Instruction Manual
- Weg Three Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg CWB Contactors Catalog
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
01536ET3E254T-S

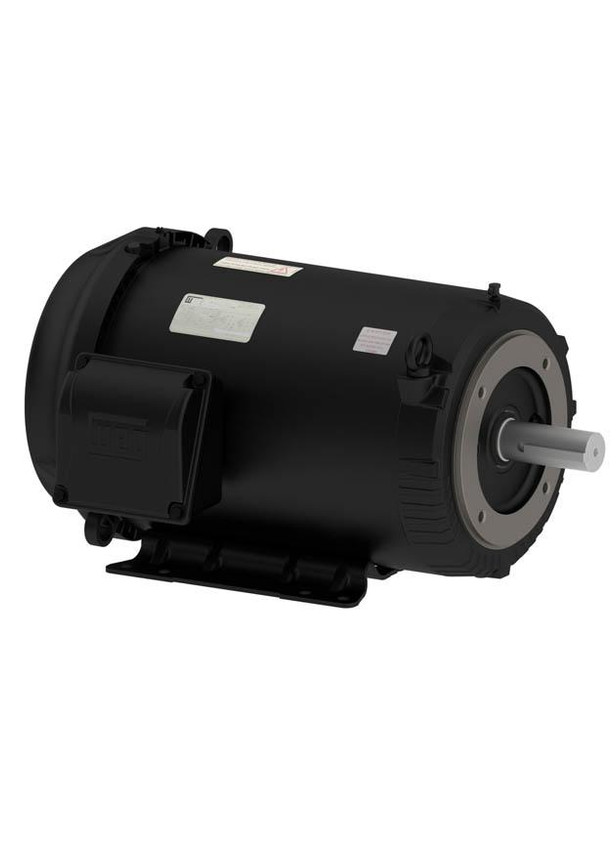

Motor, 15hp, 3600rpm, 3 Phase, 208-230/460V, 254/6T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel
