00236OT3E145T-S
Weg

00236OT3E145T-S

Alt: 12674770

$365.25

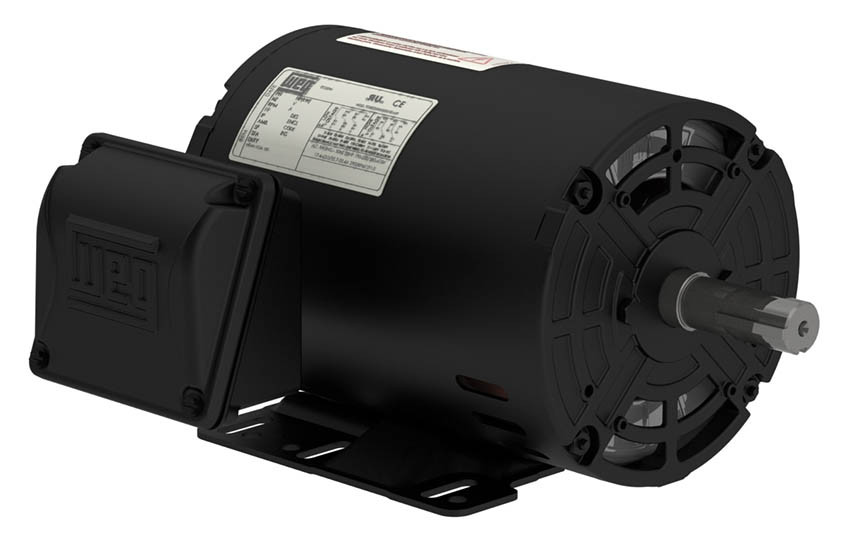

Motor, 2hp, 3600rpm, 2 Pole, 3 Phase, 230/460//190-220/380-415V, 60//50Hz, 143/5T Rolled Steel Frame, NEMA Premium Efficiency ODP, Footed/No Flange, F-1 Mounting, Left Position Terminal Box

Weight:
44.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Motor, 3 Phase, 1.5hp, 3600rpm, ODP, Foot Mount, Rolled Steel, 208-230/460V, 145T Frame

Product Features:

Frame

  • 143/5T

Rated Voltage

  • 208-230/460 V

Frequency

  • 60 Hz

Rated Speed

  • 3510 rpm

No Load Current

  • 0.917-1.83/0.917 A

Rated Current

  • 5.35-4.84/2.42 A

Rated Torque

  • 2.95 ft.lb

Frame Material

  • Rolled Steel

Approx. Weight

  • 37.1 lb
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Weg

00236OT3E145T-SG

Motor, 2hp, 3600rpm, 230/460V, 60Hz | 190-220/380V-415V, 50Hz, 143/5T, 3 Phase, Rolled Steel NEMA Premium Efficiency ODP, Footed/No Flange, F-1 Mounting, Left Position Terminal Box, AEGIS® Bearing Protection Ring Inside, Exceeds IP55

$470.25

Weg

00118AS1BPF56-S

Motor, 1hp, 1800rpm, 115/208-230V, 60Hz, 4-Pole, 56 Frame, Single Phase, NEMA MG-1 Standard Efficiency, IC410-TEAO Enclosure, Rolled Steel, Footed without Flange, F-1 Mounting without Terminal Box, IP55

$307.50

IDEC

AYW420-S

E-Stop, 22mm, Push-Pull, 40mm Mushroom, 2NO, Blue, NCNR

$39.24

Weg

01036OT3H213T-S

Motor, 10hp, 3600rpm, 3 Phase, 575V, 213/5T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel

$810.75
Available Now!

Weg

01018ET3E215T-S

Motor, 10hp, 1800rpm, Three Phase, 208-230/460V, 213/5T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel, (Cannot Ship UPS, Drop Ship Only via Truck)

$832.50

Weg

00336OT3H145T-S

Motor, 3hp, 3600rpm, 3 Phase, 575V, 143/5T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel

$408.75

Weg

00156OT3E143T-S

Motor, 1.5hp, 3600rpm, 3 Phase, 208-230/460V, 143/5T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel

$331.50

Weg

00536OT3H182T-S

Motor, 5hp, 3600rpm, 3 Phase, 575V, 182/4T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel

$488.25

Weg

02536OT3H256T-S

Motor, 25hp, 3600rpm, 3 Phase, 575V, 254/6T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel

$1,604.25
Add Selection to Cart
!
✓
