Weg
00156ET3E143TC-W22
Motor, 1.5hp, 3600rpm, 3 Phase, 208-230/460V, 143/5TC NEMA Premium Efficiency, TEFC, Footed/C Face, Heavy Duty
$428.25
00156ET3E143TC-S
Alt: 12675207
$372.75
Motor, 1.5hp, 3600rpm, 3 Phase, 208-230/460V, 143/5TC, NEMA Premium Efficiency, TEFC, Footed/C Face, Rolled Steel
- Weight:
- 42.90 LBS
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 1.5hp, 3600rpm, C-Face, Foot Mnt, Rolled Steel, 208-230/460V, 143TC Frame,
Product Features:
Frame
- 143/5T
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 3520 rpm
No Load Current
- 0.859-1.72/0.859 A
Rated Current
- 4.13-3.74/1.87 A
Rated Torque
- 2.21 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 35.3 lb
Need More Information?
- Weg Rolled Steel Line Motor Catalog
- Weg New Rolled Steel Platform Motor Brochure
- Weg Three Phase General Purpose Motor Catalog
- Weg Three Phase General Purpose Motor Instruction Manual
- Weg Three Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg CWB Contactors Catalog
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
00118AS1BPF56-S

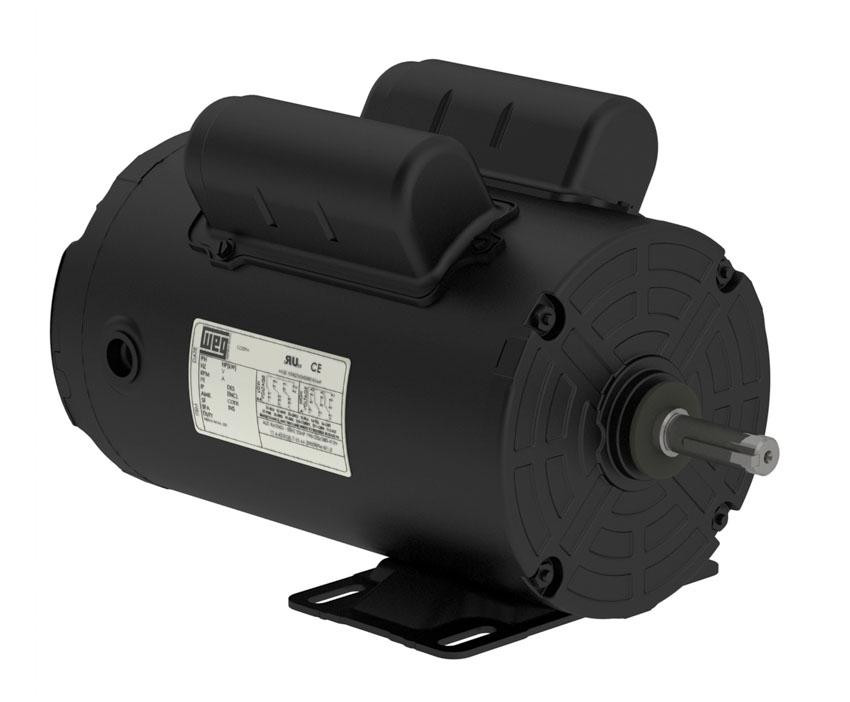

Motor, 1hp, 1800rpm, 115/208-230V, 60Hz, 4-Pole, 56 Frame, Single Phase, NEMA MG-1 Standard Efficiency, IC410-TEAO Enclosure, Rolled Steel, Footed without Flange, F-1 Mounting without Terminal Box, IP55
