Weg
00158ET3H145T-W22

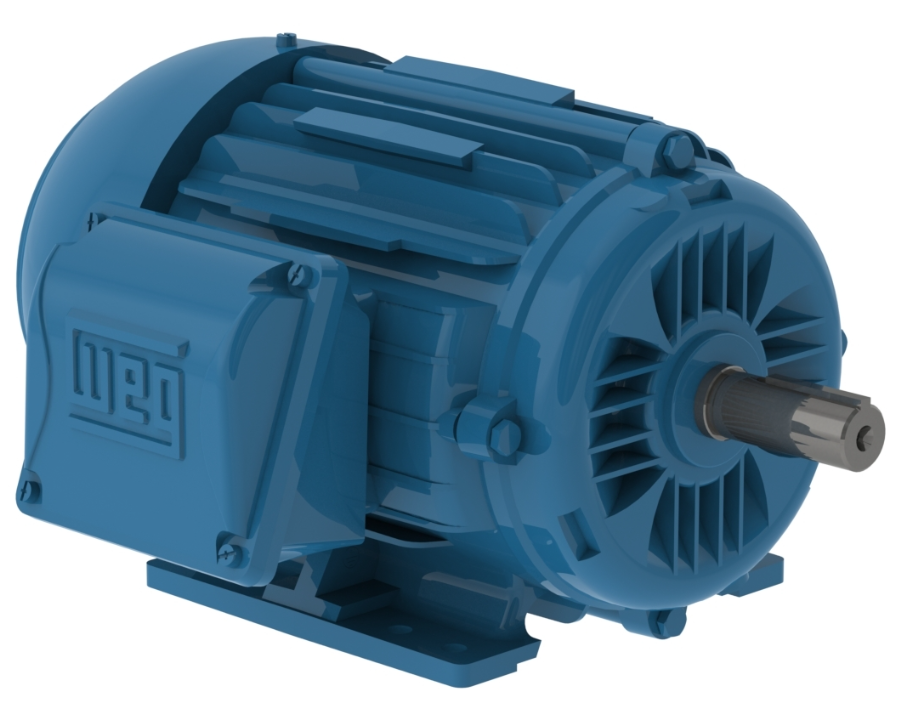

Motor, 1.5hp, 1800rpm, 3 Phase, 575V, 143/5T, 4-Pole, NEMA Premium Efficiency, TEFC, Footed/No Flange, Heavy Duty
$413.25
00158ET3H145T-S
Alt: 12682582
$360.00
Motor, 1.5hp, 1800rpm, 3 Phase, 575V, 143/5T, NEMA Premium Efficiency TEFC, Footed/No Flange, Rolled Steel
- Weight:
- 47.30 LBS
- Minimum Purchase:
- 1 unit
Description
Motor, 3 Phase, 1.5hp, 1800rpm, TEFC, Foot Mount, Rolled Steel, 575V, 145T Frame
Product Features:
Frame
- 143/5T
Rated Voltage
- 575 V
Frequency
- 60 Hz
Rated Speed
- 1750 rpm
No Load Current
- 0.867 A
Rated Current
- 1.62 A
Rated Torque
- 4.44 ft.lb
Frame Material
- Rolled Steel
Approx. Weight
- 38.2 lb
