00318OT3E182T-S
Weg

00318OT3E182T-S

Alt: 12674796

$393.00

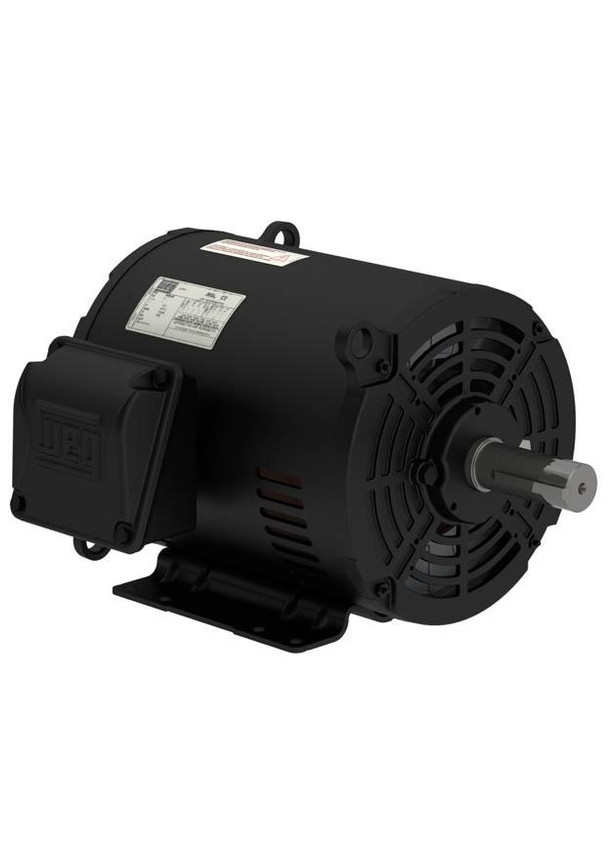

Motor, 3hp, 1800rpm, 3 Phase, 208-230/460V, 182/4T, NEMA Premium Efficiency ODP, Footed/No Flange, Rolled Steel

Weight:
72.40 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Motor, 3 Phase, 1.5hp, 1800rpm, ODP, Foot Mount, Rolled Steel, 208-230/460V, 182T Frame
Specifications
Alternate Part Number 12674796
Horsepower 3 hp
Mounting Footed (Rigid Base)
Motor Type ODP
Phase Three Phase
All - Specific Ratings NEMA Premium
RPM 1800
Series W01 Rolled Steel
All - Voltage 460/480VAC
Warranty 18 Months
Weight 72.4000

Product Features:

Frame

  • 182/4T

Rated Voltage

  • 208-230/460 V

Frequency

  • 60 Hz

Rated Speed

  • 1765 rpm

Rated Current

  • 8.54-7.72/3.86 A

Rated Torque

  • 1.22

No Load Current

  • 2.07-4.14/2.07 A

Approx. Weight

  • 30.7 lb
Downloads
