Weg
00152ET3E182TC-S

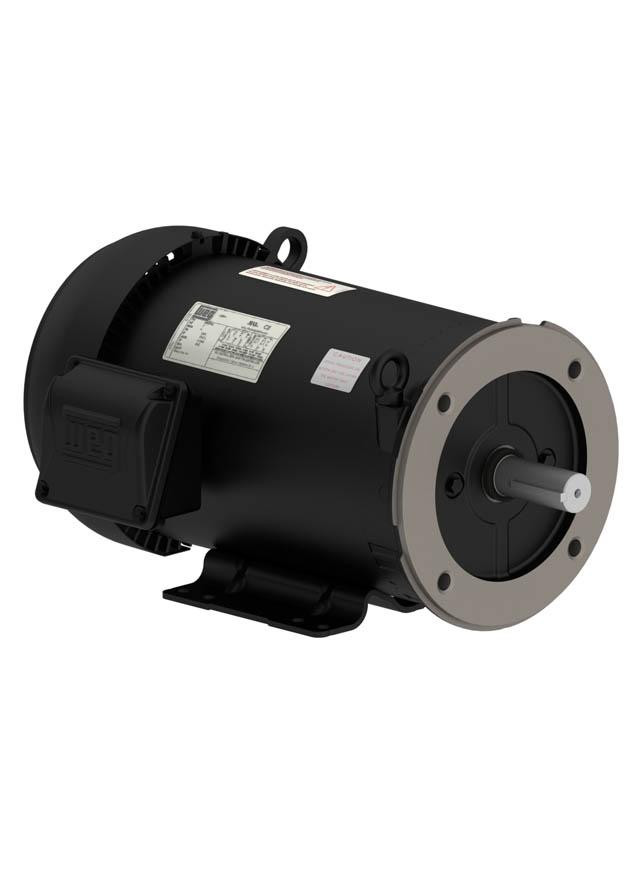

Motor, 1.5hp, 1200rpm, 3 Phase, 208-230/460V, 182/4TC, NEMA Premium Efficiency, TEFC, Footed/C Face, Rolled Steel
$517.50
00152ET3E182TC-W22
Alt: 12445702
$594.00

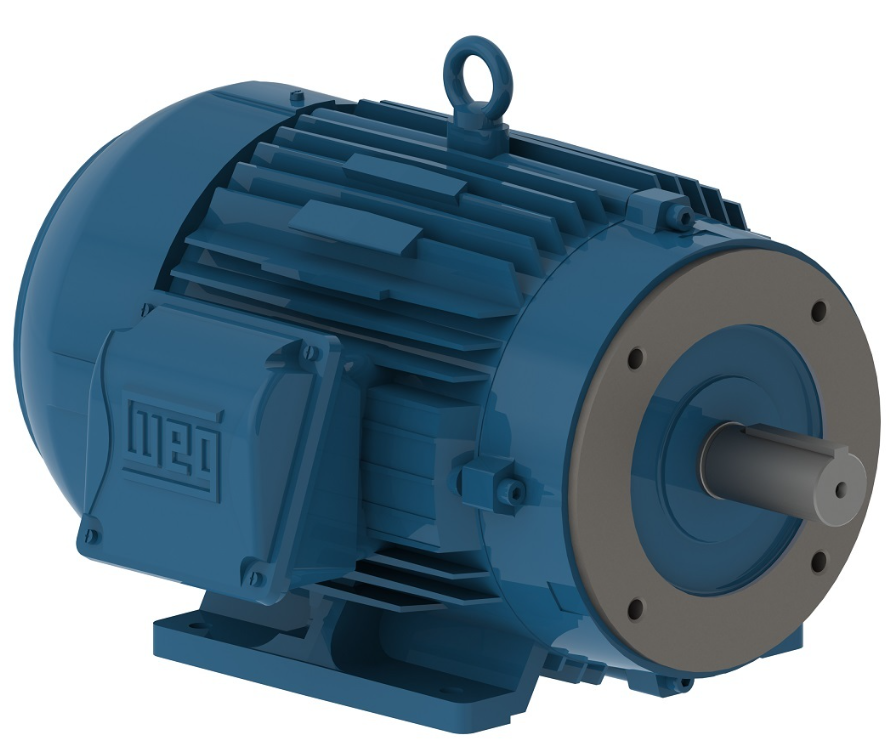

Motor, 1.5hp, 1200rpm, 3 Phase, 208-230/460V, 182/4TC, NEMA Premium Efficiency, TEFC, Footed/C Face, Heavy Duty
- Weight:
- 101.00 LBS
- Minimum Purchase:
- 1 unit
Description
Please note that motors do not qualify for free shipping.
Severe duty is standard with WEG W22 motors!
- All WEG W22 motors are Totally Enclosed Fan Cooled with a true IP55 rating against dust and moisture.
- Other IP ratings are available as well
- All NEMA Premium ratings have a 1.25 service factor (up to 100 HP) resulting in cooler operation and extended life of the motor
- All Cast Iron Construction, including Terminal Box and Fan Cover
- Solid feet for reduced vibration levels and impact absortion
- Optimized ventilation system for cooler operation and extended life
- High Grade FC200 cast iron provides superior mechanical strength and heat dissipation
- Exclusive W-Seal 364T and larger provides superior bearing protection
- Taconite Labyrinth seal 586 Frame and larger
- Exclusive WEG painting system exceed 200hrs ASTM 117 corrosion test (Exceeds IEEE841 standard)
- Balanced to 0.08 inches per second vibration limits (Meets IEEE841 standard)
- Four Bolt Conduit Cover with glued Neoprene Gasket
- Impregnation Resin and magnet wire are insulation class H
- Stainless Steel Nameplate - Laser edged with high contrast background
- Corrosion Proof Drains g Inverter Duty per NEMA MG1, Part 31
- Certified Class I Div 2, Groups A, B, C & D; Class II, Div 2, Groups F & G
Product Features:
Frame
- 182/4TC
Rated Voltage
- 208-230/460 V
Frequency
- 60 Hz
Rated Speed
- 1170 rpm
No Load Current
- 1.63-3.25/1.63 A
Rated Current
- 5.62-5.08/2.54 A
Rated Torque
- 6.64 ft.lb
Frame Material
- Cast Iron
Approx. Weight
- 95.2 lb
Need More Information?
- Weg W22 Three-Phase Electrical Motor Brochure
- Weg W22 Three-Phase Electric Motor Technical Catalog
- Weg Three-Phase General Purpose Motor Catalog
- Weg Three-Phase General Purpose Motor Instruction Manual
- Weg Three-Phase General Purpose Motor Operation Manual
- Weg Product Number Configuration
- Weg Standard Product 2020 Catalog
- Warranty Terms for Weg Automation Products
- 'Extend to a 3 Year Warranty' Form
