DHP0022G

DHP0022G

Alt: DHP Series

$371.30

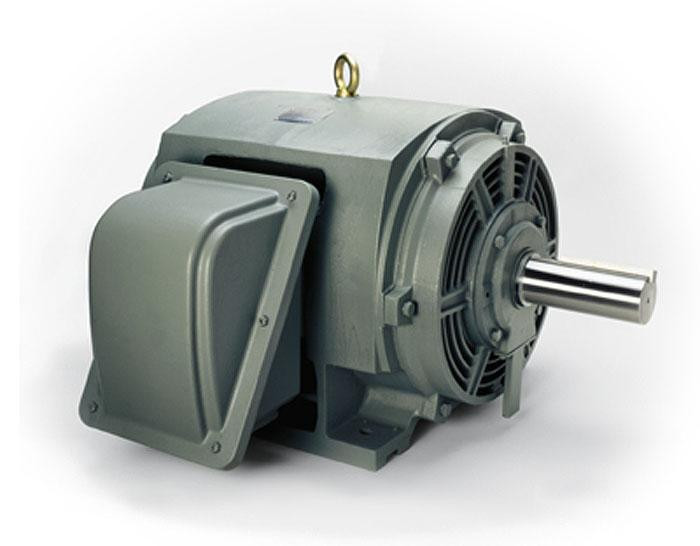

Motor, 2hp, 3600rpm, 2-Pole, 230/460V, 2.59FL A, 60Hz, 145T Frame, 3 Phase Induction, NEMA Premium Efficiency ODP with SGR

Weight:
63.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
TECO-Westinghouse manufacturers motors, variable frequency drives and soft starters.

In 1995 TECO acquired all Westinghouse Electric Corp. shares and in 1997 the name was officially changed to TECO-Westinghouse Motor Company (TWMC). They are headquartered in Round Rock, Texas.

After acquiring Motovario, TECO also has a line of gearmotors.

Features Include:

  • Three Phase, 60 Hz, 1.15 Service Factor (Continuous)
  • Standard Features: 100 Ohm Platinum Stator RTD's (2 per Phase), Space Heaters (120V)
  • Class F Insulation
  • Class B Temperature Rise
  • NEMA Design B Torques
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments. Fully Gasketed with NPT Threaded Entrance-F1 Mounted
  • Designed for 40˚C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Rotation: Bi-Directional Except 2 Pole which is Counter-Clockwise (CCW) facing the Drive End
  • Cast Iron Frame and End Brackets
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction for F#449T and Below
  • Squirrel Cage Copper or Copper Alloy Bar Rotor Construction for F#5000 and Above
  • Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
  • Paint Color: Dark Gray - Munsell 7.5B 3.5/0.5
  • High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex™ EM
  • Insulated Non-Drive End Bearing on 2 Pole Motors; 600 HP and Larger
  • Labyrinth Type Metal Flinger on Both Ends
  • Cast Iron Inner and Outer Bearing Caps
  • Grounding Terminal Inside Main Box and on Motor Foot
  • Stainless Steel Nameplate
  • Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
  • 6 Leads
  • Motors are CSA Approved
