00218ES1RFD56H-S

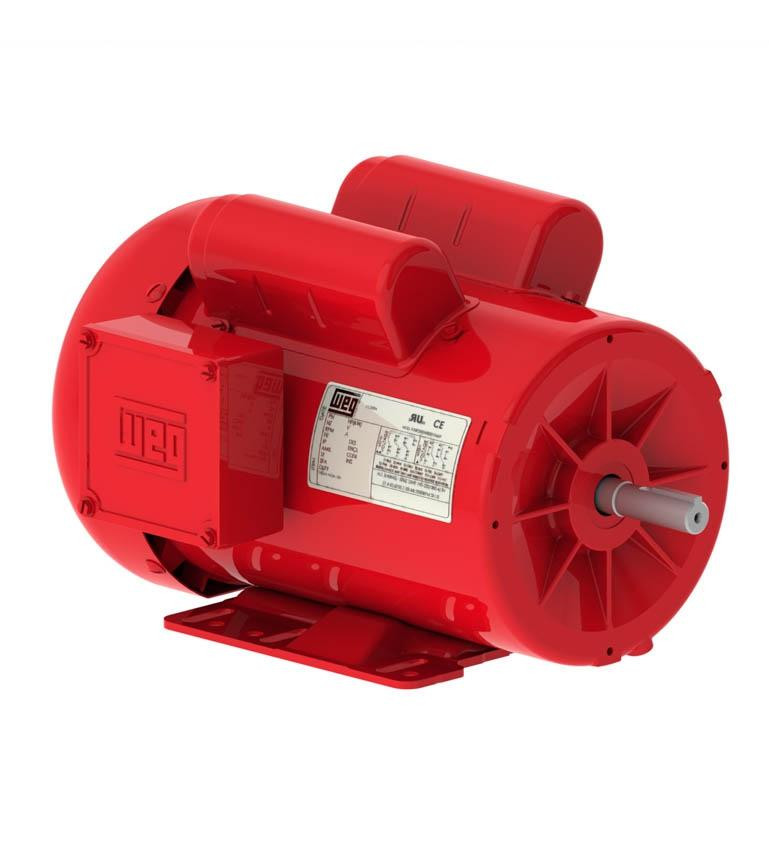

Our Weg farm duty motors give you high starting torque and include v-rings as standard.

These motors are versatile for indoor and outdoor applications and overload protection available in all frams protects the motor from extremem overloads.

This is a general purpose TEFC motor that offers:

• Doubl shielded ball bearings
• Insulation class F with class B temperature rise
• Start and run capacitor on 1.5 hp and up
• High starting torque
• Manual reset thermal overload protector

Features Include:

Output Rating:

• 2 HP (1.5 kW)

Rated Voltage:

• 115/230 V

Rated Current:

• 21.0/10.5 A

Synchronous Speed:

• 1800 rpm

Rated Speed:

• 1750 rpm

Rated Torque:

• 5.92 ft.lb

Number of Poles: 4

Frequency: 60 Hz

No-Load Current: 12.4/6.20 A

Starting Method:

• Direct on Line

Mounting:

• Foot-Mounted, F-1

Enclosure:

• IC411 - TEFC Totally (Enclosed Fan Cooled)

Frame: G56H

Frame Material: Rolled Steel
