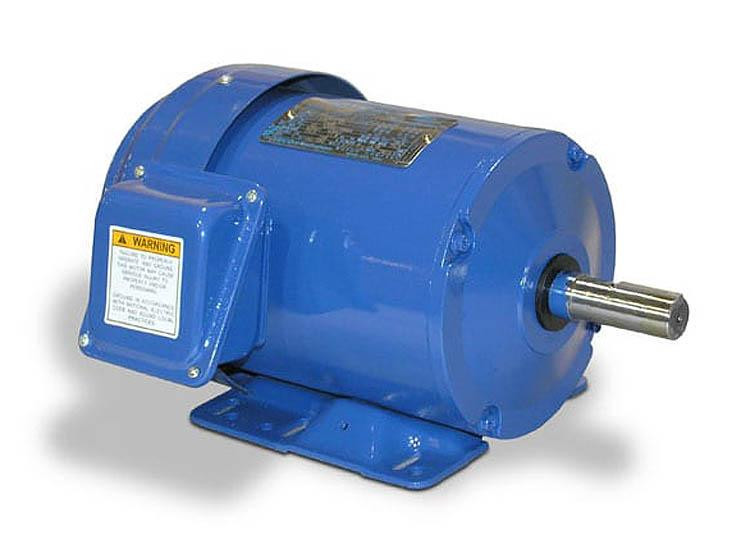

Product image is representative only, please verify specifications.
GH0/22
Alt: Replaced GH0/42
$226.54
Motor, .25hp, 3600rpm, 56 Frame, 0.79 FL Amps (230V), Rigid Base Mount
- Weight:
- 25.00 LBS
- Minimum Purchase:
- 1 unit
Description
TECO-Westinghouse manufacturers motors, variable frequency drives and soft starters.
In 1995 TECO acquired all Westinghouse Electric Corp. shares and in 1997 the name was officially changed to TECO-Westinghouse Motor Company (TWMC). They are headquartered in Round Rock, Texas.
After acquiring Motovario, TECO also has a line of gearmotors.
Specifications
Alternate Part Number
Replaced GH0/42
Frame
56
Horsepower
.25 hp (1/4)
Mounting
Footed (Rigid Base)
Motor Type
TEFC, Rolled Steel
Phase
See Spec or N/A
All - Specific Ratings
IP44
RPM
3600
Series
GH/GP Rolled Steel
All - Voltage
220/240VAC
Warranty
3 Years
Weight
25.0000
Series Features Include:
- Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
- Grounding Ring Factory Installed Externally on NDE Bracket
- Class F Insulation
- Class B Temperature Rise
- NEMA Design B Torques
- Rolled Steel Frame, Fan Cover, and Main Conduit Box
- Grounding Terminal Inside Main Conduit Box
- Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted Only (F2 not available)
- Designed for 40˚C Ambient Temperature
- Designed for 3300 ft. Elevation
- Bi-Directional Rotation
- Cast Iron End Brackets
- 1045 Carbon Steel Shaft
- Aluminum Die Cast Squirrel Cage Rotor Construction
- Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
- Paint Color: Blue - Munsell 5PB 3/8
- Double Shielded Bearings Pre-Packed with MULTEMP SRL (Non-regreasable)
- Stainless Steel Nameplate
- New Dual Column Design Nameplate as Standard (60/50 Hz)
- Suitable for Inverter Use per NEMA MG-1.4.4.2, Part 31
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- 9 Leads for 5 HP and Smaller;
- 12 Leads for 7.5 HP and Larger
- Motors are U.L. Recognized for United States and Canada, CSA Approved and CE Marked
