02518ET3EID284TC-W22
Weg

02518ET3EID284TC-W22

Alt: 12809165

$2,210.25

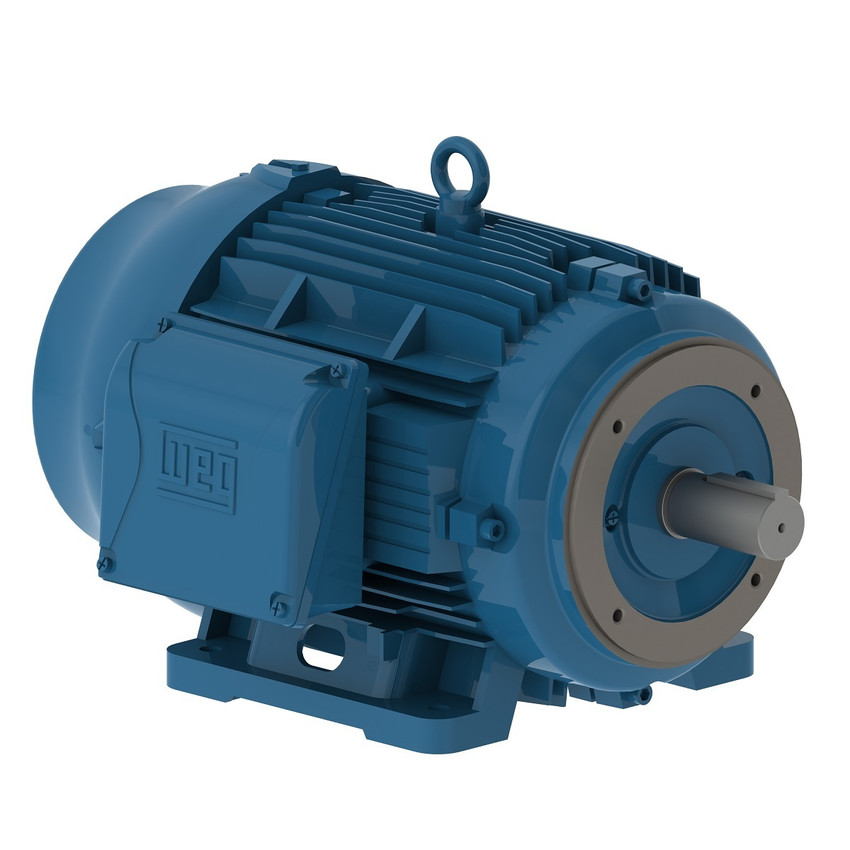

Motor, 25hp, 1800rpm, 3 Phase, 230/460V, 284/6TC, Farm Duty-Irrigation Duty, TEFC C-Face Foot Mount

Weight:
454.60 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Motor, 25hp, 1800rpm, 3-Phase 230/460V, 284/6TC, Farm Duty-Irrigation Duty, TEFC C-Face Foot Mount

Features Include:

  • Output Rating: 25 HP (18.5 kW)
  • Rated Voltage: 208-230/460 V
  • Rated Current: 65.2-59.0/29.5 A
  • Synchronous Speed: 1800 rpm
  • Rated Speed: 1765 rpm
  • Rated Torque: 73.4 ft.lb
  • Number of Poles: 4
  • Frequency: 60 Hz
  • No-Load Current: 18.1-21.0/10.5 A
  • Starting Method: Direct on Line
  • Mounting: Foot-Mounted, F-1
  • Enclosure: IC411 - TEFC
  • Frame: 284/6TC
