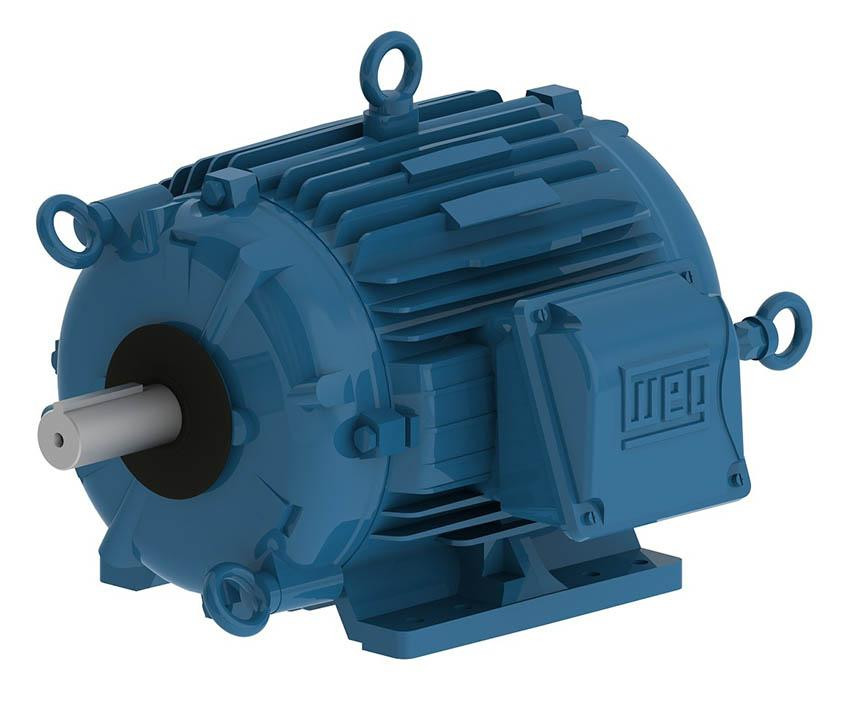

20009ET3GKD449T-W22

Weg's Crusher Duty motors are designed for your most demanding crusher applications!

• Three phase
• TEFC-NEMA Premium
• Mount horizontally or vertically
• Exceptional high starting and breakdown torques
• W22 cast iron platform
• Superior cooling system and solid feet for cool operation and low vibration and noise
• Oversized roller bearings

Need a crusher duty soft starter? Search Weg's TPH2 series now!

Features Include:

Output Rating:

• 200 HP (150 kW)

Rated Voltage:

• 460 V

Rated Current:

• 254 A

Synchronous Speed:

• 900 rpm

Rated Speed:

• 890 rpm

Rated Torque:

• 1160 ft.lb

Number of Poles: 8

Frequency: 60 Hz

No-Load Current: 115 A

Starting Method:

• Direct On Line

Mounting:

• Foot-Mounted, F-1

Enclosure:

• IC411 - TEFC

Frame: 447/9T

Frame Material: Cast Iron
