Weg
00118AS1BPF56-S

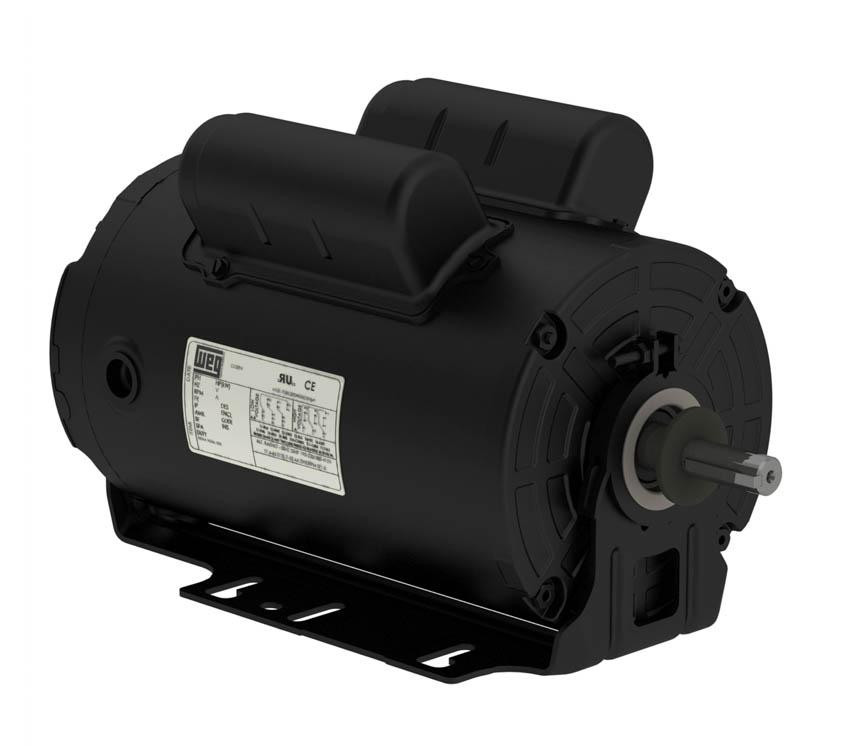

Motor, 1hp, 1800rpm, 115/208-230V, 60Hz, 4-Pole, 56 Frame, Single Phase, NEMA MG-1 Standard Efficiency, IC410-TEAO Enclosure, Rolled Steel, Footed without Flange, F-1 Mounting without Terminal Box, IP55
$307.50
00118AS1BRBPF56-S
Alt: 15412616, Replaces 00118ES1BRBPFD56 (11552015)
$326.25
Motor, 1hp, 1800rpm, 4 Pole, 56 Frame, Single Phase, 115/208-230V, 60Hz, NEMA MG-1, IC418 TEAO, Resilient Base, Rolled Steel, Footed/No Flange, F-1 Mounting, without Terminal Box, Farm Duty/Poultry Fan, IP55
- Weight:
- 43.00 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Features Include:
- Frame: 56
- Output: 1 HP (0.75 kW)
- Number of Poles: 4
- Frequency: 60 Hz
- Rated speed: 1730 rpm
- Slip: 3.89 %
- Rated voltage: 115/208-230 V
- Rated current: 13.7/7.52-6.85 A
- L. R. Amperes: 91.8/50.4-45.9 A
- LRC: 6.7x(Code M)
- No load current: 9.60/4.14-4.80 A
- Rated torque: 3.04 ft.lb
- Design: L
- Insulation Class: F
- Service factor: 1.15
- Temperature rise: 80 K
- Duty Cycle: Cont.(S1)
- Starting Method: Direct On Line
- Ambient temperature: -20°C to +40°C
- Altitude: 1000 m.a.s.l.
- Degree of Protection: IP55
- Enclosure: IC410 - TEAO
- Mounting: F-1
- Rotation¹: Both (CW and CCW)
Technical Information:
