Weg
00118AS1BPF56-S
Motor, 1hp, 1800rpm, 115/208-230V, 60Hz, 4-Pole, 56 Frame, Single Phase, NEMA MG-1 Standard Efficiency, IC410-TEAO Enclosure, Rolled Steel, Footed without Flange, F-1 Mounting without Terminal Box, IP55
$307.50
00118ES1RFD56-S
Alt: 14795753 (Was 12882660)
$295.50

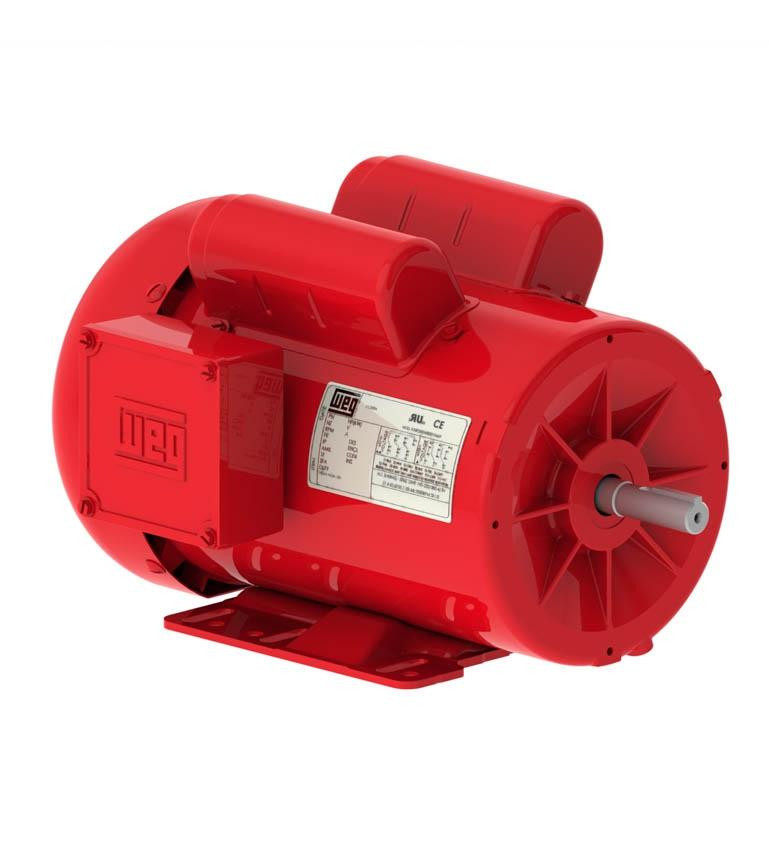

Motor, 1hp, 1800rpm, Single Phase, 115/230V, 56, General Purpose, Fractional, TEFC, Footed, Rolled Steel
- Weight:
- 44.00 LBS
- Minimum Purchase:
- 1 unit
Description
Our Weg farm duty motors give you high starting torque and include v-rings as standard.
These motors are versatile for indoor and outdoor applications and overload protection available in all frams protects the motor from extremem overloads.
This is a general purpose TEFC motor that offers:
- Doubl shielded ball bearings
- Insulation class F with class B temperature rise
- Start and run capacitor on 1.5 hp and up
- High starting torque
- Manual reset thermal overload protector
Features Include:
- Output Rating: 1 HP (0.75 kW)
- Rated Voltage: 115/230 V
- Rated Current: 13.6/6.80 A
- Rated Torque: 1.48 ft.lb
- Number of Poles: 4
- Frequency: 60 Hz
- No-Load Current: 91.1/45.6 A
- Full Load Torque: 2.97 lb.ft
- Full Load Speed: 1745 rpm
- Starting Method: Direct on Line
- Mounting: Foot-Mounted, F-1
- Enclosure: W01 (Rolled Steel) TEFC (IP55)
- Frame: 56
