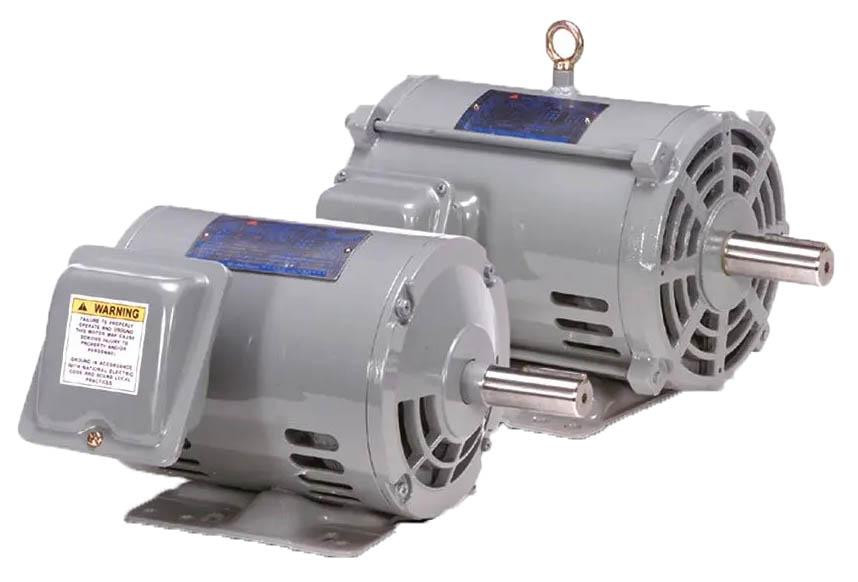

DSP0/74

TECO-Westinghouse manufacturers motors, variable frequency drives and soft starters.



In 1995 TECO acquired all Westinghouse Electric Corp. shares and in 1997 the name was officially changed to TECO-Westinghouse Motor Company (TWMC). They are headquartered in Round Rock, Texas.



After acquiring Motovario, TECO also has a line of gearmotors.

Series Features Include:

• 0.75 HP
• 1800 RPM
• 208/230/460 Volts @ 60 Hz
• 56 Frame
• Open Drip Proof (IP22)
• Available in Horizontal Foot Mounted or JP/JM Frame Configurations
• Meets or Exceeds EISA Requirements
• Department of Energy Efficiency Certification #CC002A
• 1.15 Service Factor - Continuous (1.0 when operated with a VFD)
• Class F Insulation with Phenolic Alkyd Resin Varnish
• Class B Temperature Rise
• NEMA Design B Torques
• Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted.
• F2 Available for Frames 180T-280T - EPAct only (NEMA P Frame Not Centered). Call for Details
• Bi-Directional Rotation
• Rolled Steel Frame and Conduit Box
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
• Double Shielded Bearings Pre-Packed with MULTEMP SRL Grease
• Stainless Steel Nameplate
• Speed Ranges: 20:1 VT, 10:1 CT
• 12 Leads - 7.5 HP and Up; 9 Leads for all Others
