.7518ES1RFD56-S

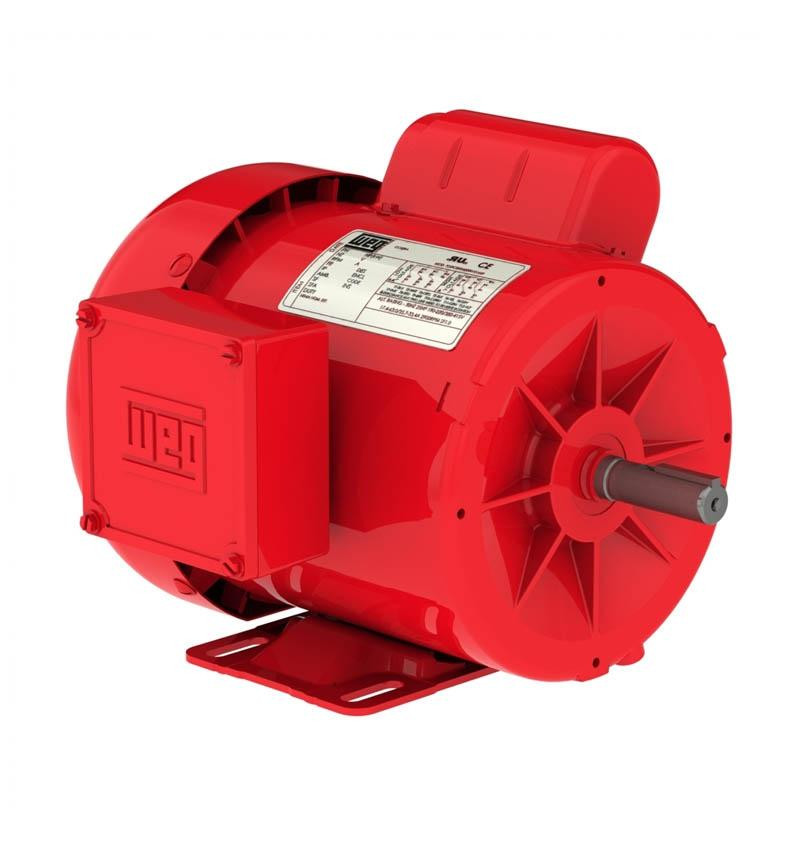

Our Weg farm duty motors give you high starting torque and include v-rings as standard.

These motors are versatile for indoor and outdoor applications and overload protection available in all frams protects the motor from extremem overloads.

This is a general purpose TEFC motor that offers:

• Doubl shielded ball bearings
• Insulation class F with class B temperature rise
• Start and run capacitor on 1.5 hp and up
• High starting torque
• Manual reset thermal overload protector

Features Include:

Output Rating:

• 0.75 HP (0.550 kW)

Rated Voltage:

• 115/230 V

Rated Current:

• 10.6/5.30 A

Synchronous Speed:

• 1800 rpm

Rated Speed:

• 1745 rpm

Rated Torque:

• 2.23 ft.lb

Number of Poles: 4

Frequency: 60 Hz

No-Load Current: 8.00/4.00 A

Starting Method:

• Direct on Line

Mounting:

• Foot-Mounted, F-1

Enclosure:

• IC411 - TEFC Totally (Enclosed Fan Cooled)

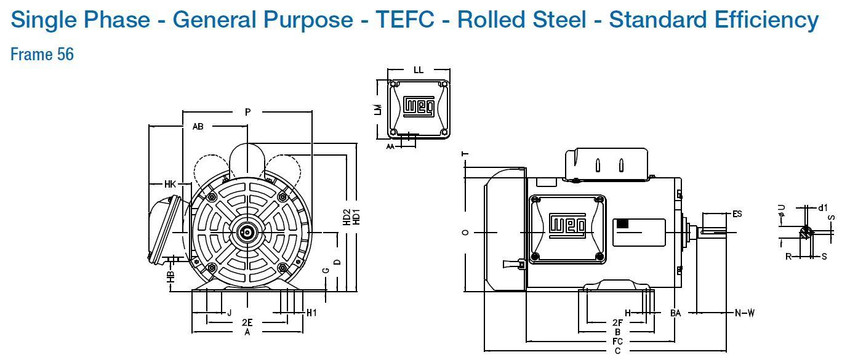

Frame: B56

Frame Material: Rolled Steel
