Product image is representative only, please verify specifications.
1311017133
Alt: 14418914
$1,287.44

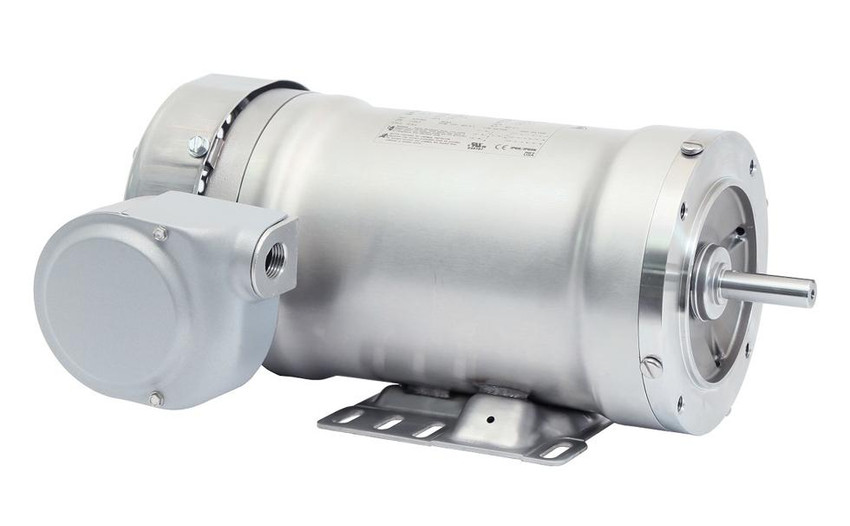

Motor, 0.5hp, 1200/1000rpm, 6-Pole, 56C, 3 Phase, 230/460V, 60/50Hz, Wash Down, HydroDuty™ Standard Efficiency, Stainless Steel, TEFC, Footed/C-Flange, Terminal Box F-1 Left Position, IP69K
- Weight:
- 53.00 LBS
- Minimum Purchase:
- 1 unit
Description
Weg calls this the 'Ultimate Stainless Steel Washdown Motor'!
- 3 phase
- Available 1/2 to 5hp
- IP66
- Flared shell keeps moisture droplets away from encapsulated winding
- Center cavity drain keeps condensation away from motor face
- Drip grooves keep condensation away from bearings
- Patented breater vent vaporizes condensation
Features Include:
- Degree of Protection: IP69K
- Mounting: F-1
- Flange: C
- Frame Material: Stainless Steel
- Frequency: 60/50 Hz
- Output rating: 0.5 HP
- Enclosure: TEFC
- Frame: 56C
- Voltage: 230/460V
- Synchronous speed: 1200/1000 rpm
